Technical Specifications

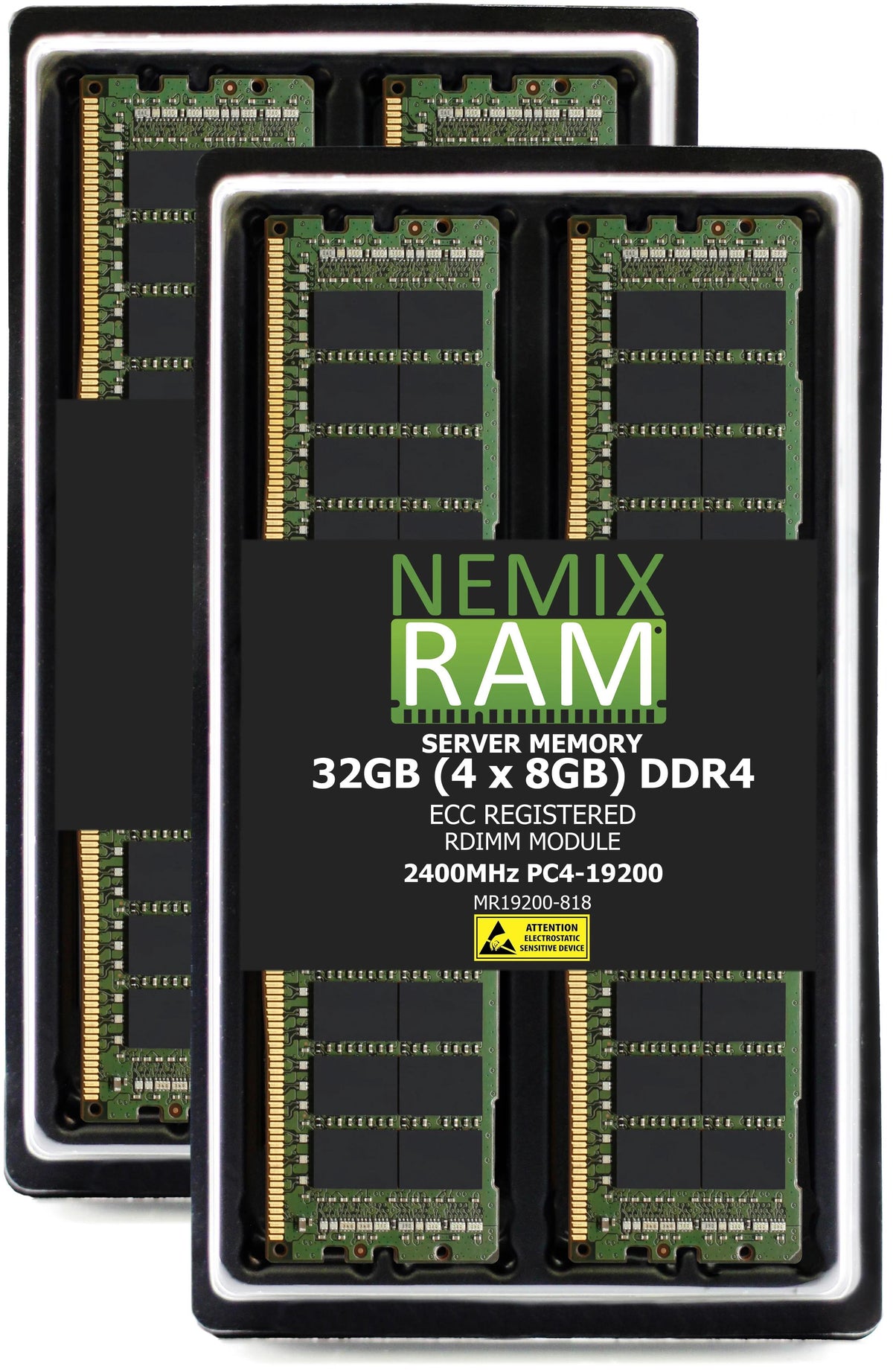

RDIMM for HP Z840 Workstation
Module Density: 8GB
Form Factor: RDIMM
Technology Speed: DDR4 2400MHz PC4-19200
Rank: 1Rx8
Voltage: 1.2V
ECC: ECC
Buffered: Buffered
Compatible Machines: HP Z840 Workstation
HP Z840 Workstation
The HP Z840 Workstation supports 16 slots of upgradable memory, with a maximum capacity of 256GB. It is compatible with our RDIMM modules for high-performance operation.
NEMIX RAM memory upgrades for the HP Z840 Workstation are backed by a lifetime replacement warranty.
Our modules are researched, matched, and compatibility-tested using top-tier components from leading suppliers such as Samsung, Micron, and Hynix, ensuring compliance with
industry standards like JEDEC and CE requirements.
ALTERNATE CONFIGURATION SOLUTIONS
Also available for this machine
Memory speed and module type are not interchangeable — choose the page that matches your system.
Description
NEMIX RAM memory upgrades for the HP Z840 Workstation: DDR4-2400 PC4-19200 ECC Registered (RDIMM) modules, 8GB and 16GB, sold as single modules and matched kits of up to 16, selected as drop-in, compatibility-tested replacements. 1.2V, 288-pin, JEDEC-compliant.
The HP Z840 Workstation is built for one or two Intel Xeon E5-2600 v3/v4 processors. It has 16 DDR4 DIMM slots and supports up to 256GB with 16GB RDIMMs. HP lists DDR4-2400 registered memory for the Z840; the processor sets the running speed (2400, 2133 or 1866 MT/s). Eight slots serve each processor; a one-processor system has 8 slots. HP supports up to 256GB with RDIMMs and up to 1TB with LRDIMMs; RDIMMs and LRDIMMs cannot be mixed. For LRDIMMs, see the HP Z840 LRDIMM listing. Install identical modules in matched sets, following the slot order HP gives for each processor; the system runs memory at the speed its processor supports.
Researched, matched, and compatibility-tested by NEMIX RAM, a US-based memory specialist since 1993, and backed by a lifetime warranty. Purchase orders, net terms, and volume pricing are available for workstation fleet refreshes; contact our sales team for a quote.
