TerraMaster NAS Memory: F, T and U-Series Desktop, Tower and Rackmount NAS
Memory upgrades for TerraMaster NAS: F-series desktop units, T-series towers and U-series rackmount systems, from the current 424, 425, 500 and 725 generations back to DDR3L models still in service. NEMIX RAM has 50 TerraMaster model listings, each matched to the memory type, slot count and maximum capacity TerraMaster specifies, plus 8 listings matched to TerraMaster memory part numbers. To go straight to the products, type your TerraMaster model number into the search bar at the top of the page, or browse all TerraMaster NAS memory.
Find your TerraMaster model first
The model number (for example F4-424 Pro, T9-500 Pro or U12-725 Plus) is on the label on the back or base of the NAS and in the TOS web interface. The first letter is the form factor: F for desktop, T for tower, U for rackmount, followed by the bay count. The second number is the generation, and it decides the memory. Read the whole name: Pro, Plus and Max versions often use a different processor and a different number of slots than the base model. The F4-424 has one DDR5 slot, while the F4-424 Max has two.
Which memory does my TerraMaster NAS take?
| Memory | Which models | TerraMaster models |
|---|---|---|
| ECC DDR4-3200 UDIMM, 8 slots | U-725 rackmount series on Intel Xeon D-2700. ECC unbuffered memory in matched sets of 1, 2, 4 or 8. | U8-725, U12-725, U12-725 Plus, U16-725 Plus |
| DDR5 SODIMM, 2 slots, up to 64GB | Intel Core U-series models. Matched pairs run dual-channel; the F6-425 Pro (Core i3-1315U) runs DDR5 at 5200 MT/s. | F4-424 Max, F6-424 Max, F6-425 Pro, U4-500, U8-500 Plus, U12-500 Plus, T9-500 Pro, T12-500 Pro |
| DDR5 SODIMM, 1 slot, up to 32GB | Intel N95, N150, N305 and N350 models. One slot: replace the installed module with the capacity you need. | F2-424, F4-424, F4-424 Pro, F6-424, F8 SSD, F8 SSD Plus, F4 SSD, F2-425 Plus, F4-425 Plus, F4-425 Pro |

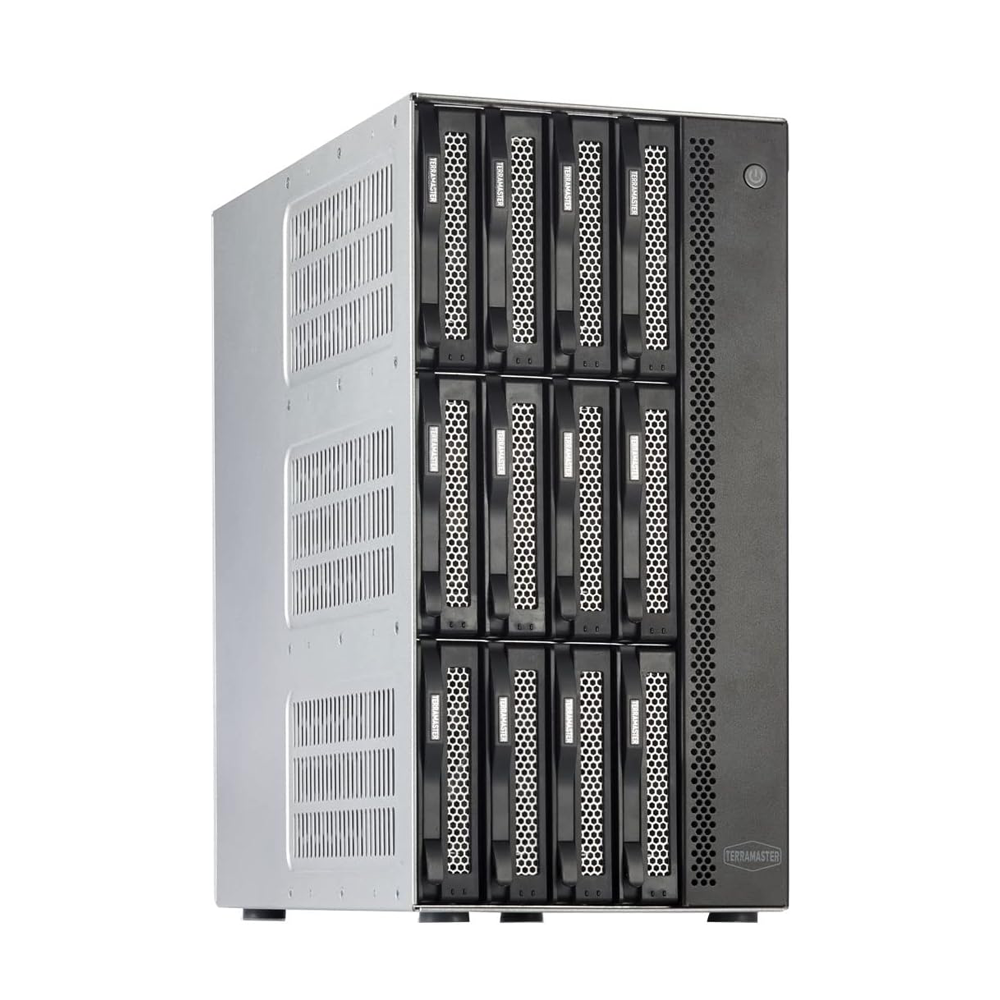

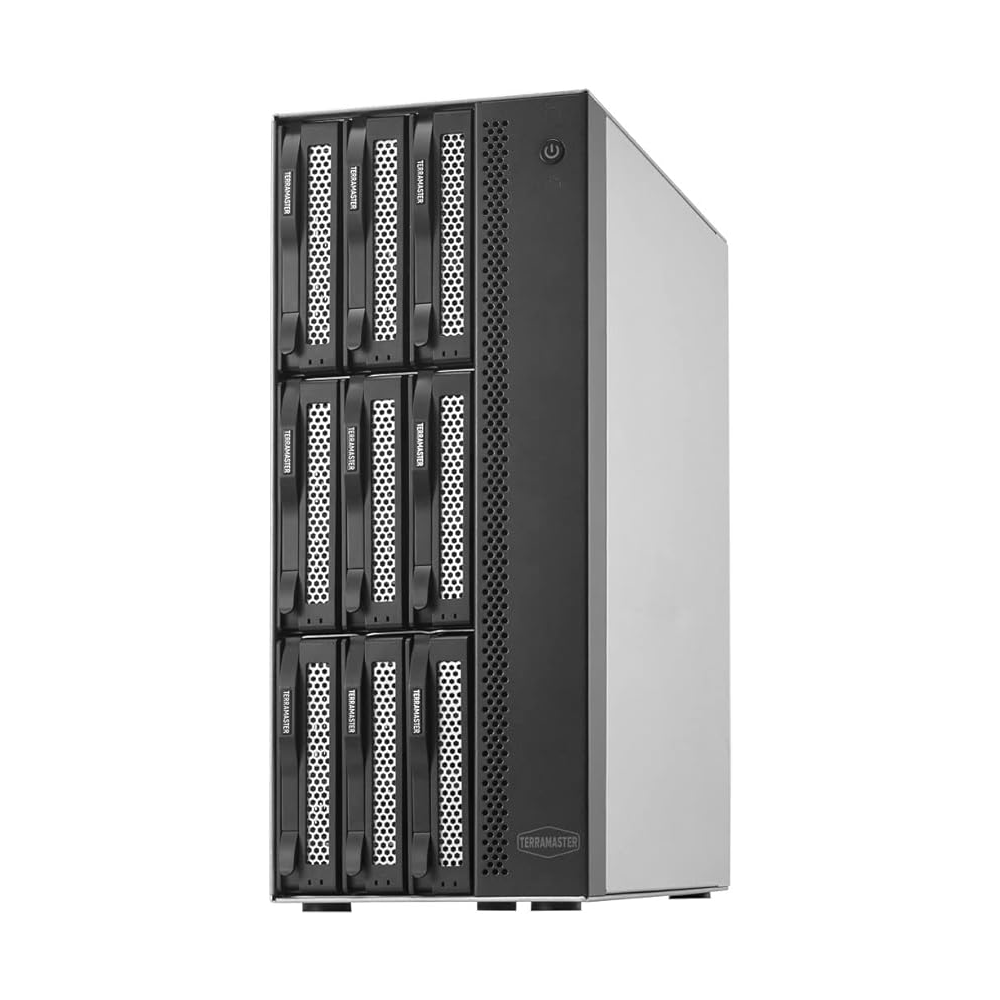

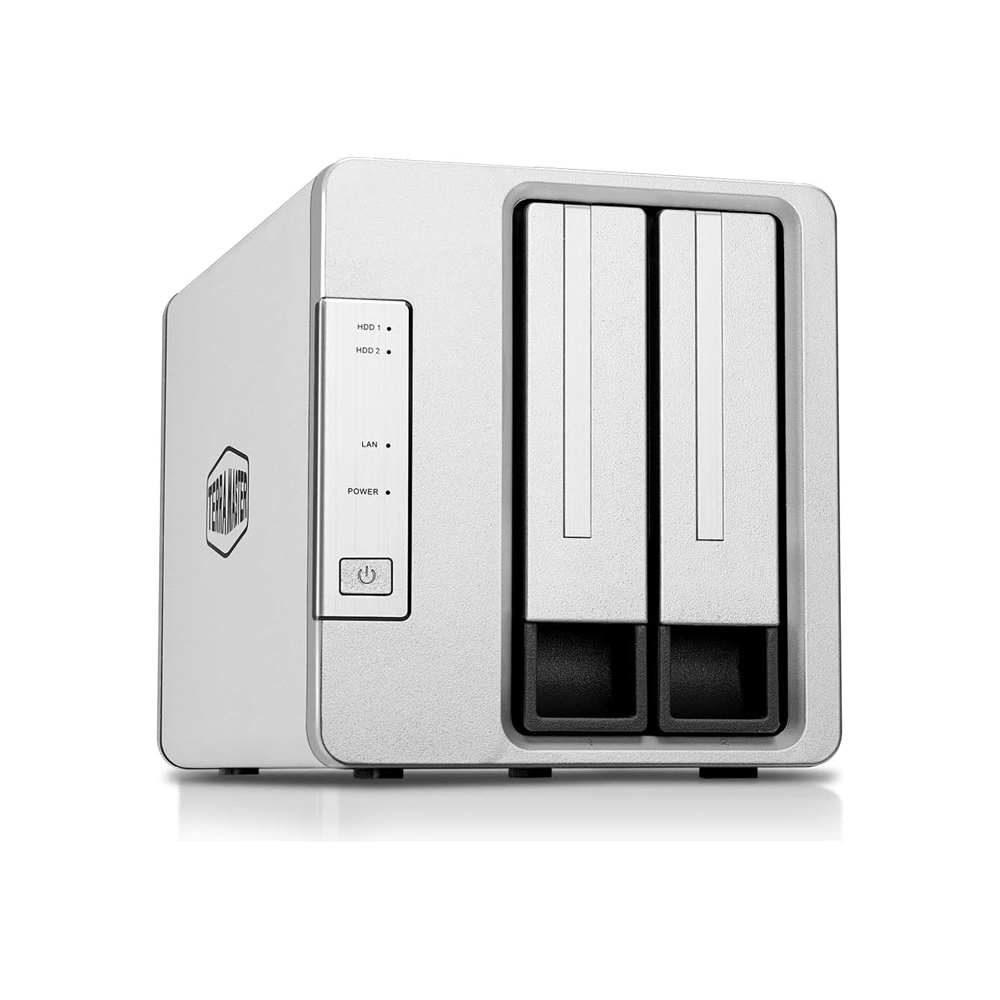

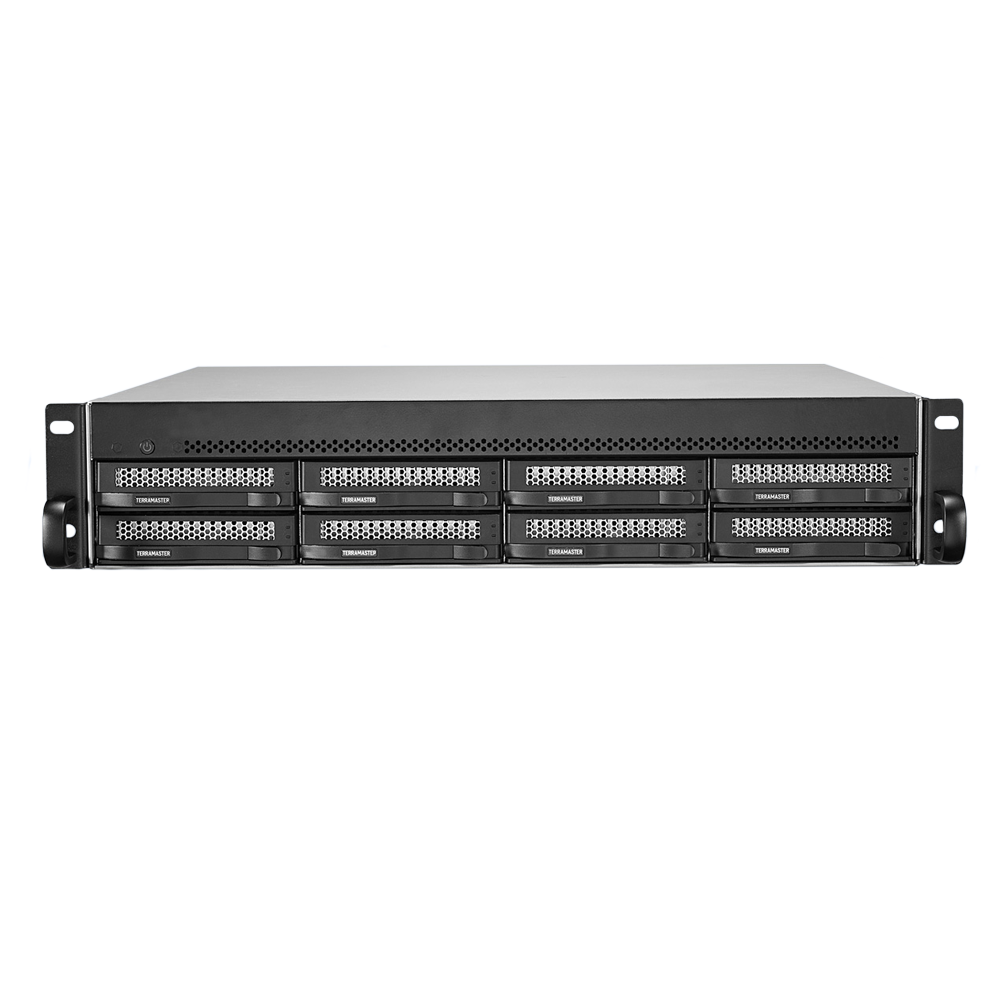

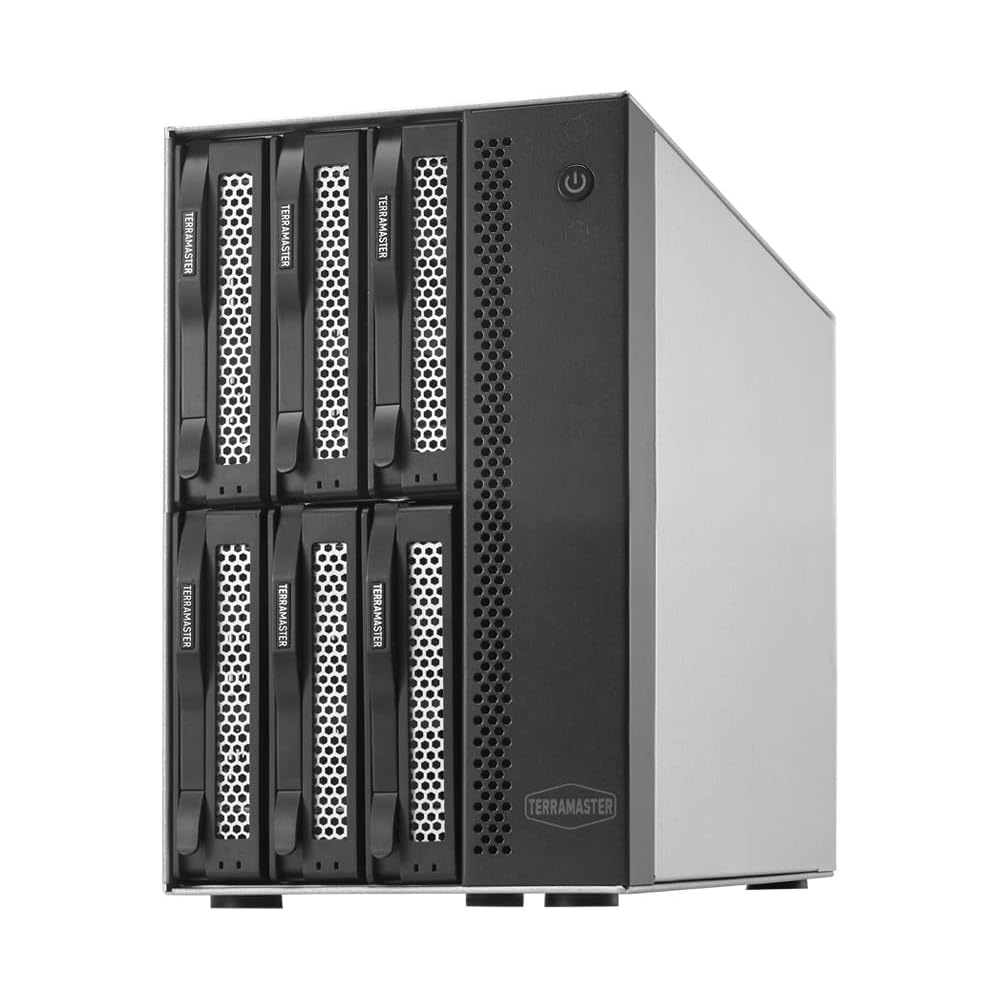

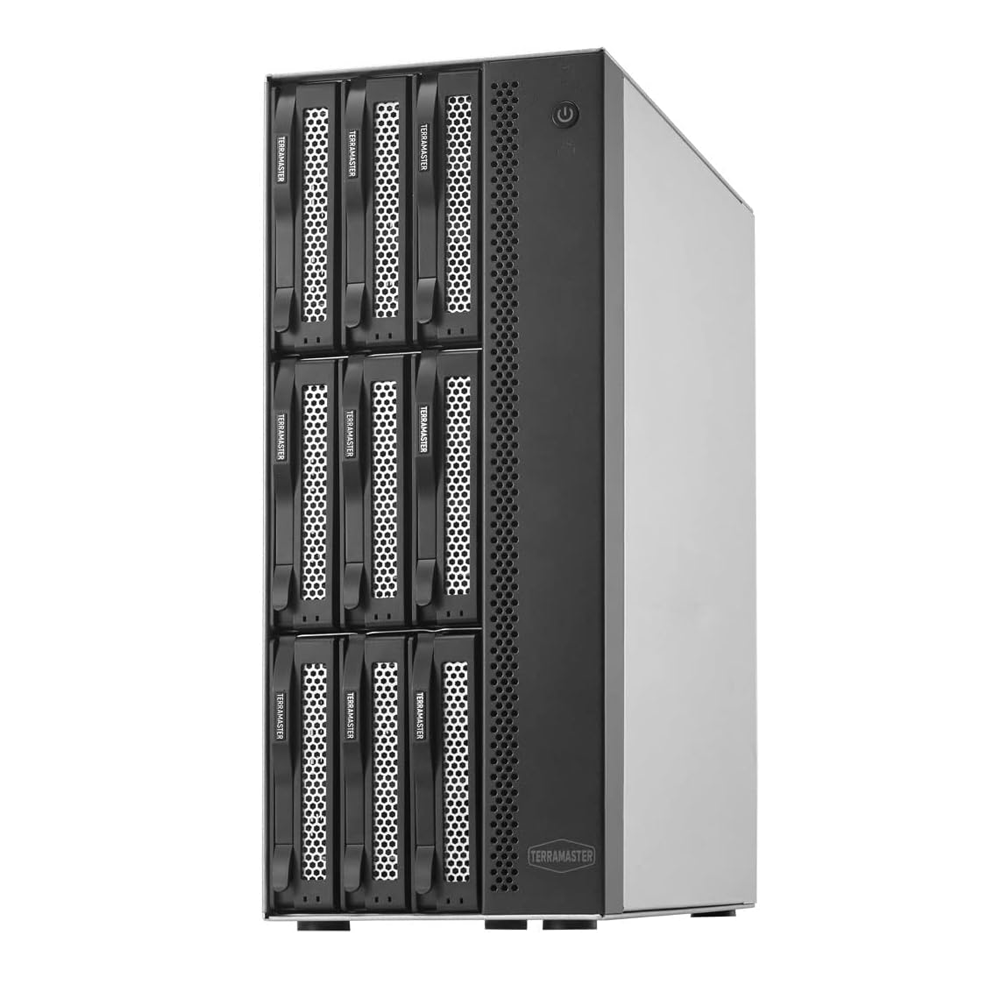

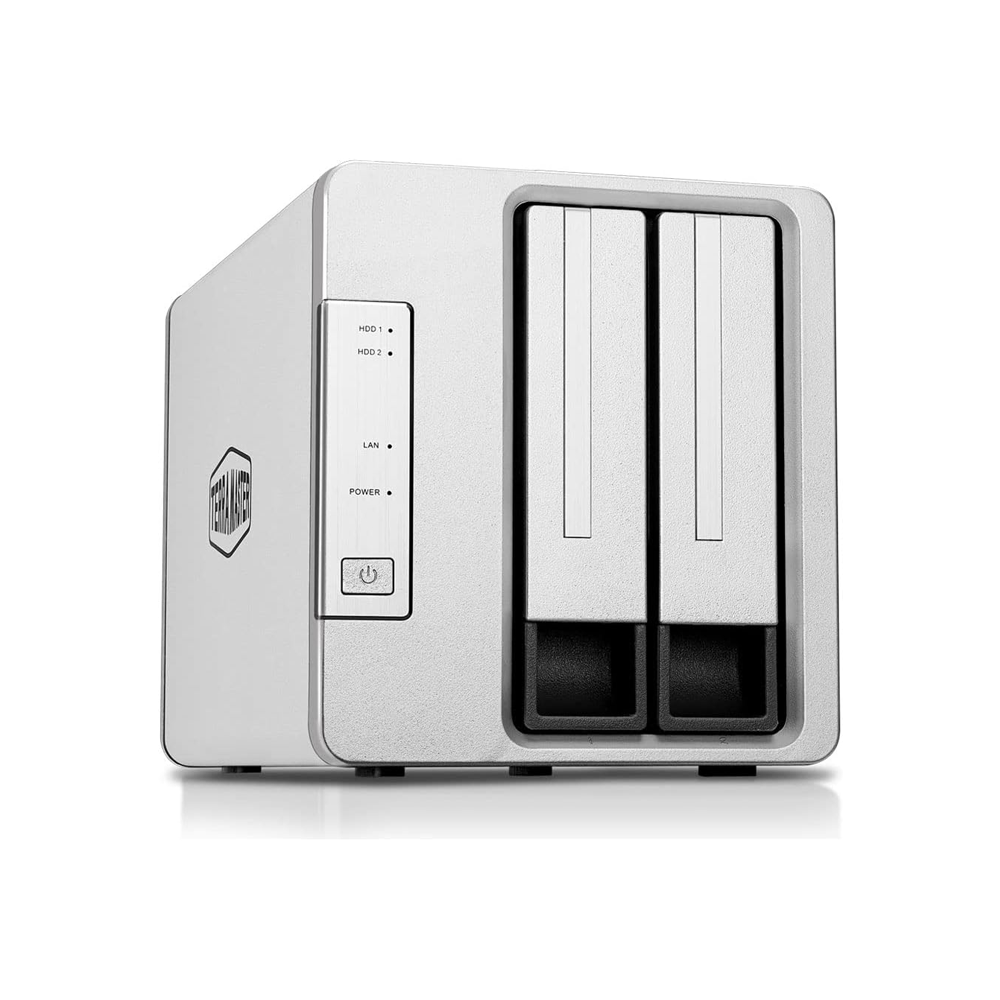

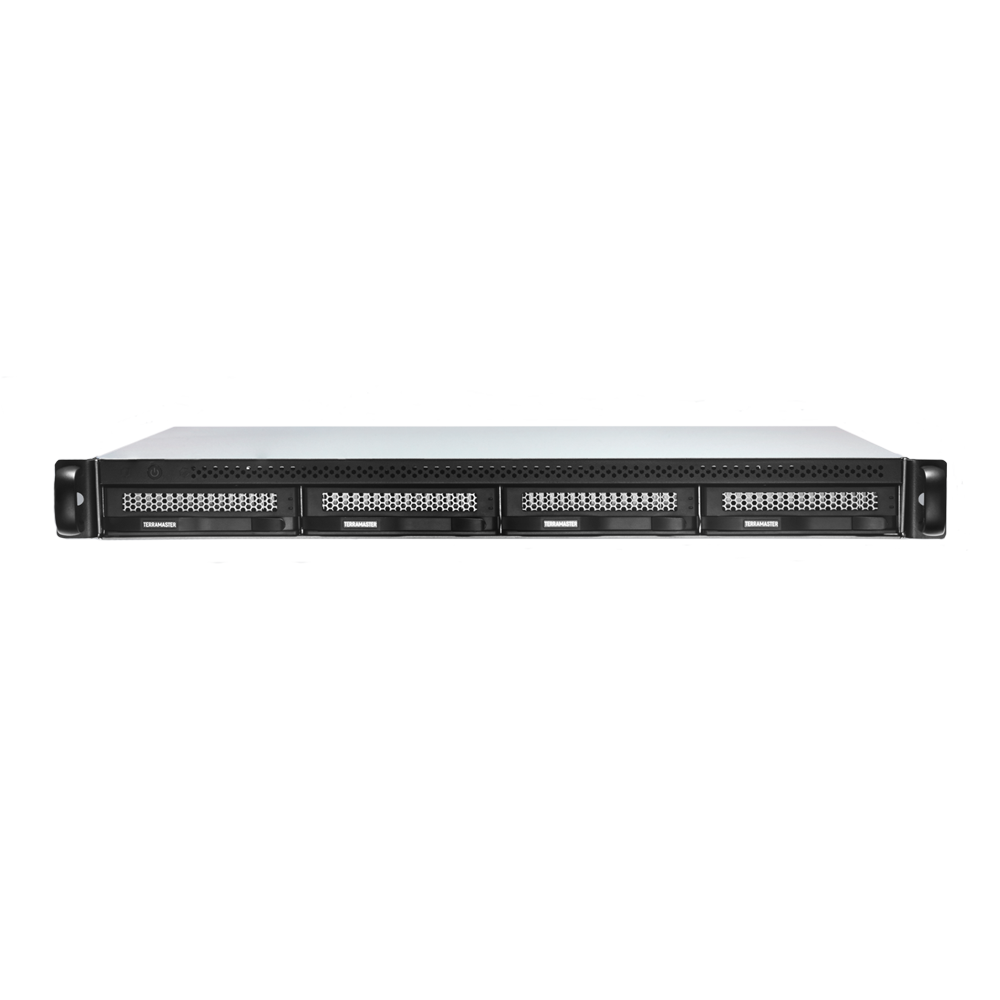

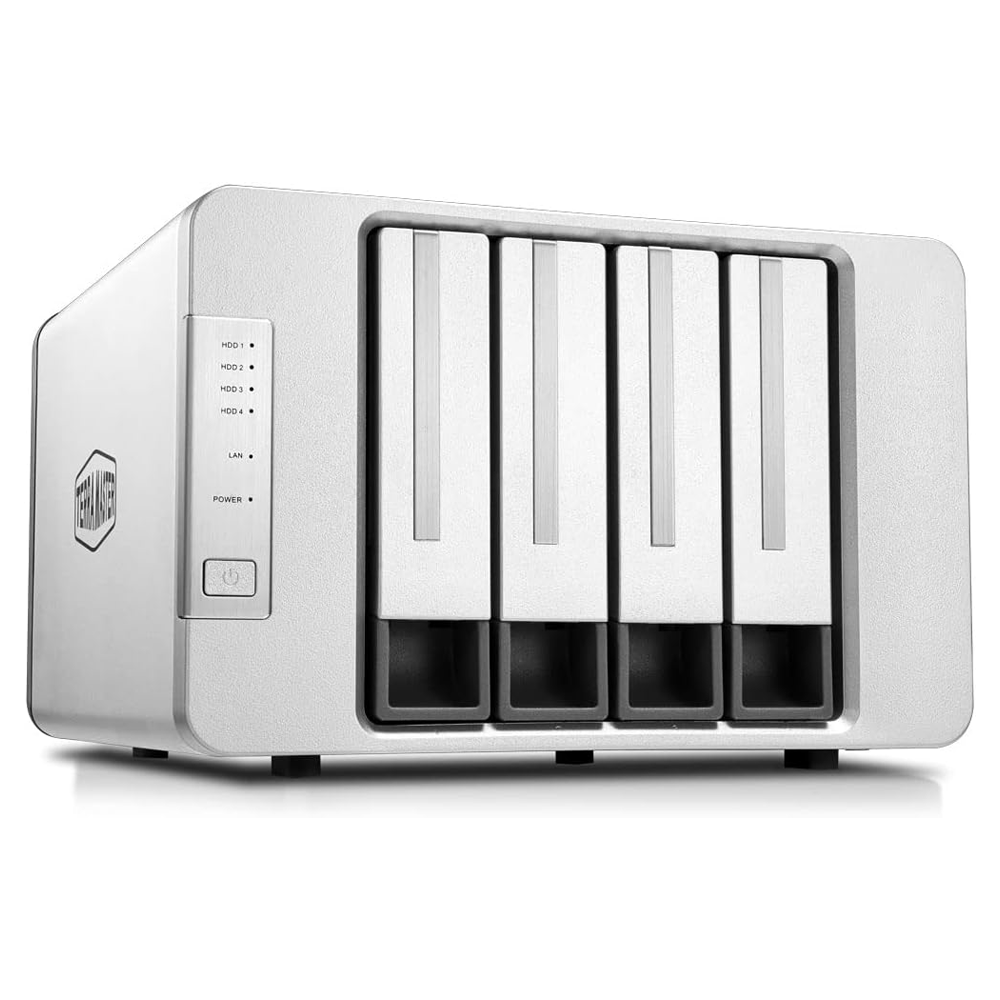

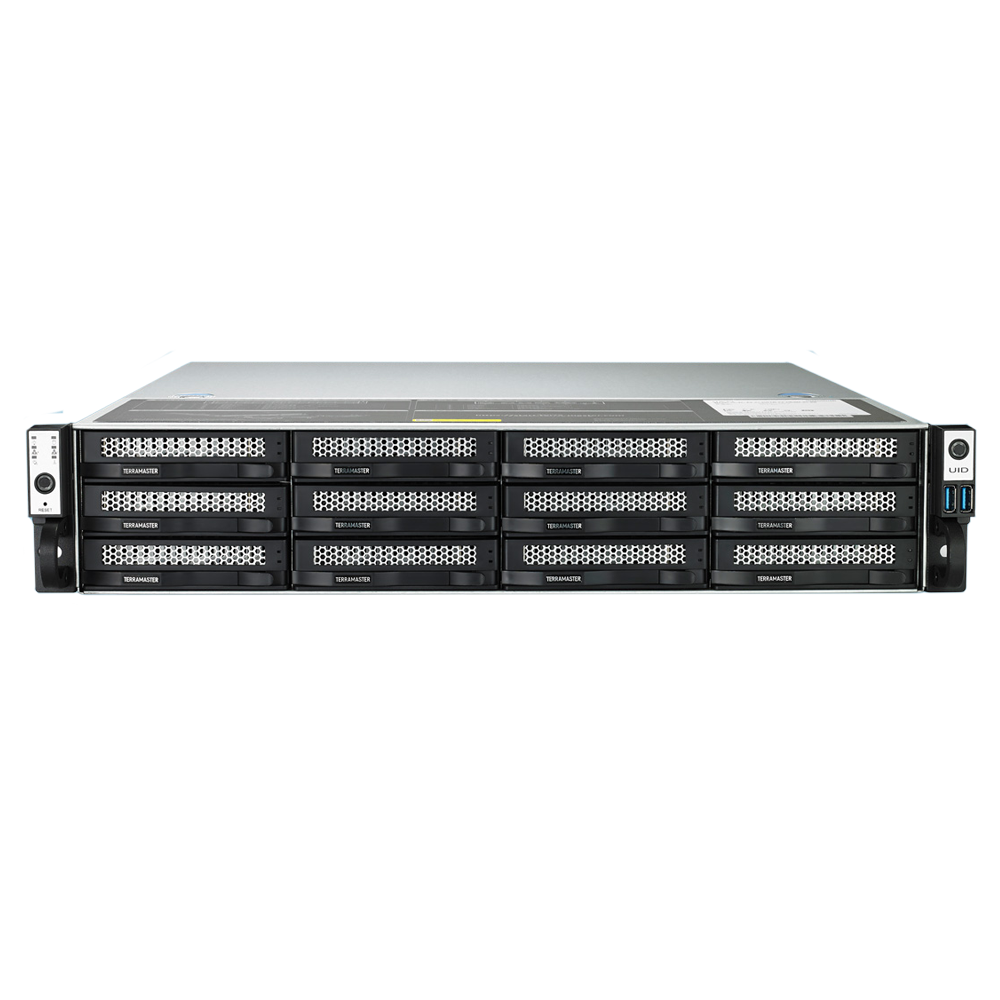

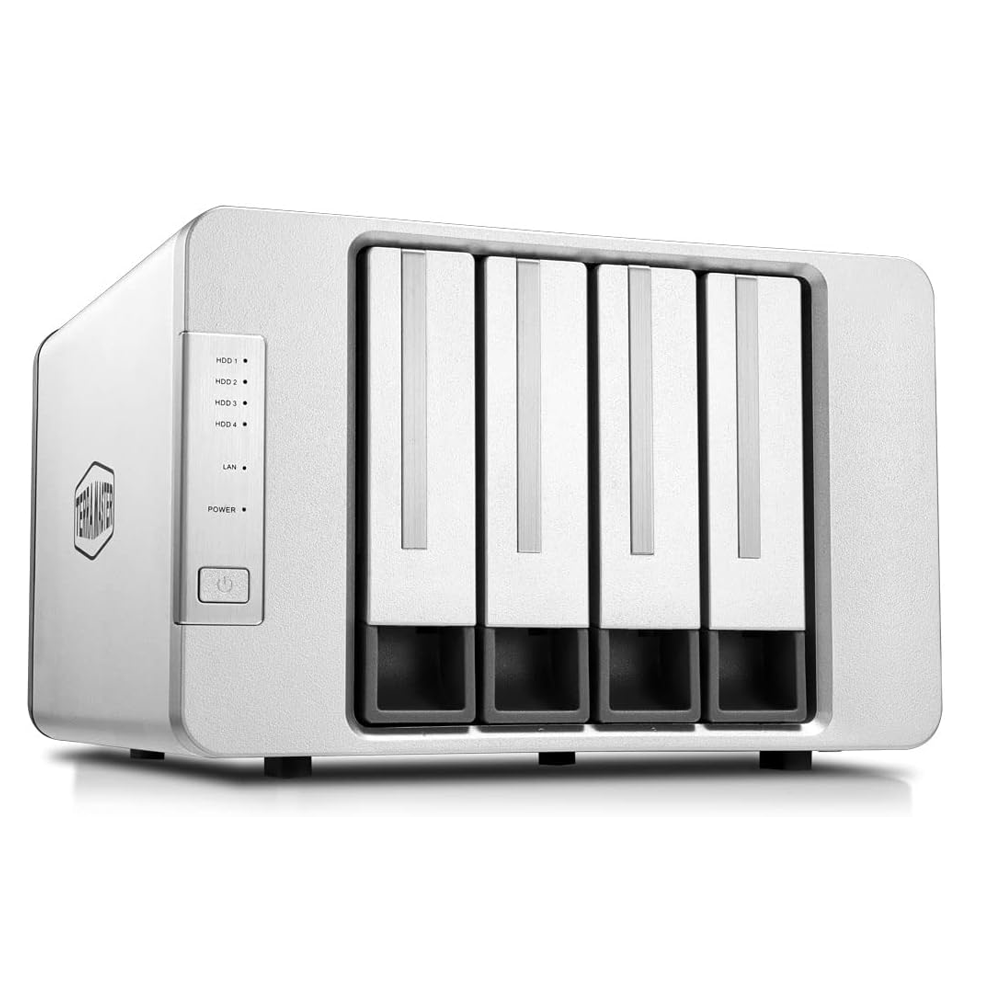

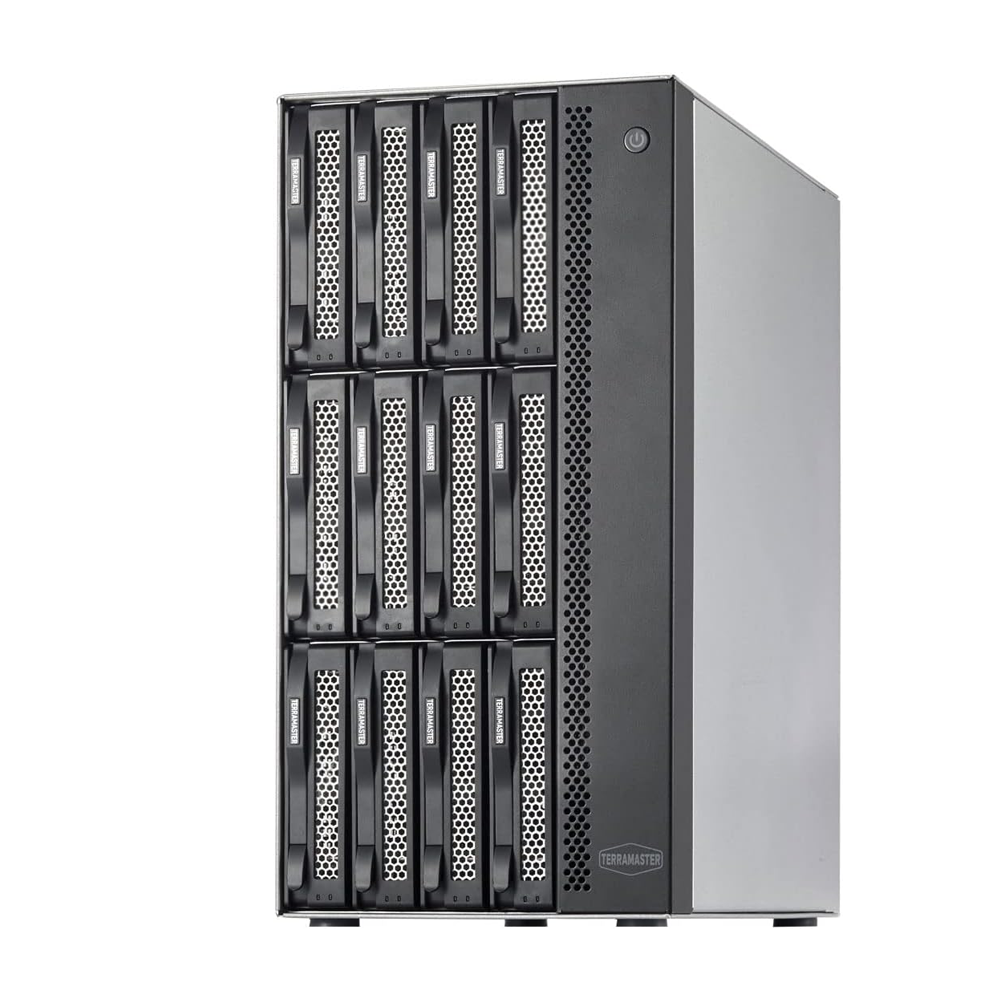

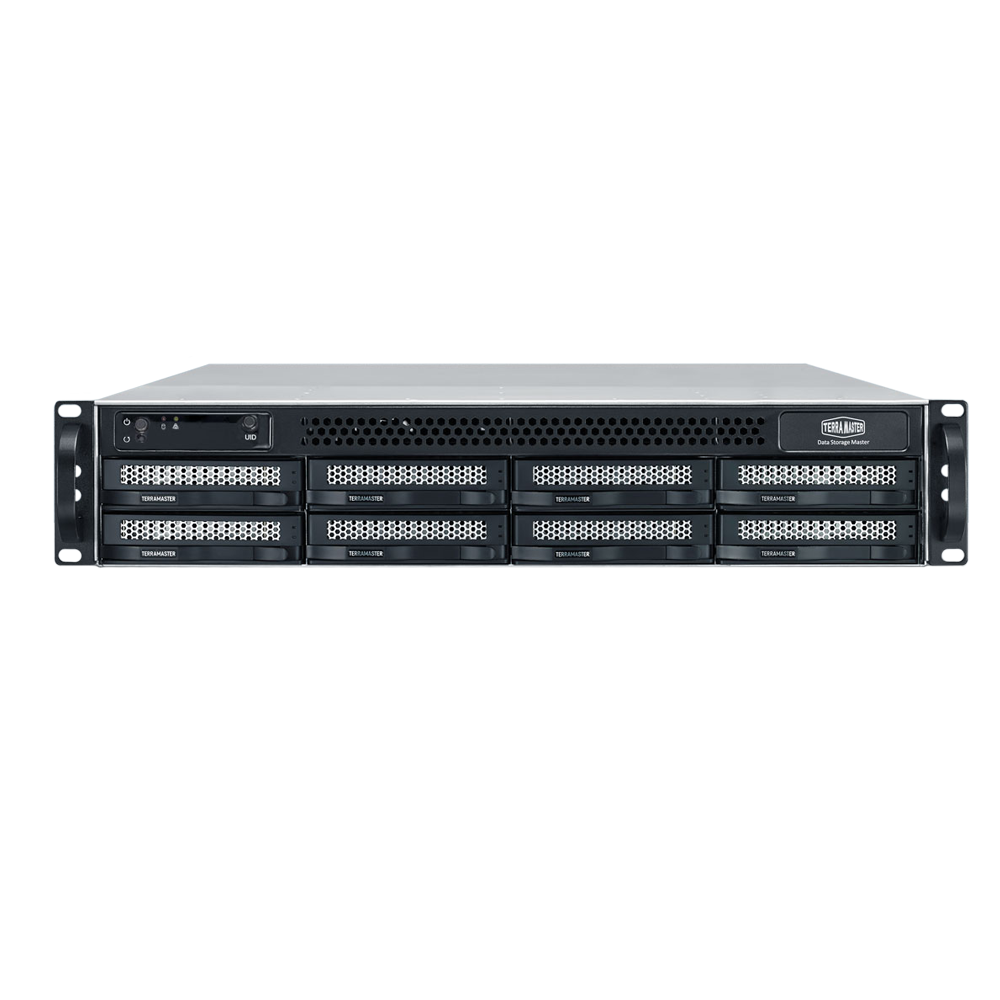

| DDR4-3200 SODIMM | Intel Celeron and Pentium models of the 425, 423, 450 and 223 generations. | F2-425, F4-425, F2-423, F4-423, F2-223, F4-223, T6-423, T9-423, T12-423, T9-450, T12-450, U4-423, U8-423, U12-423, U8-450 |

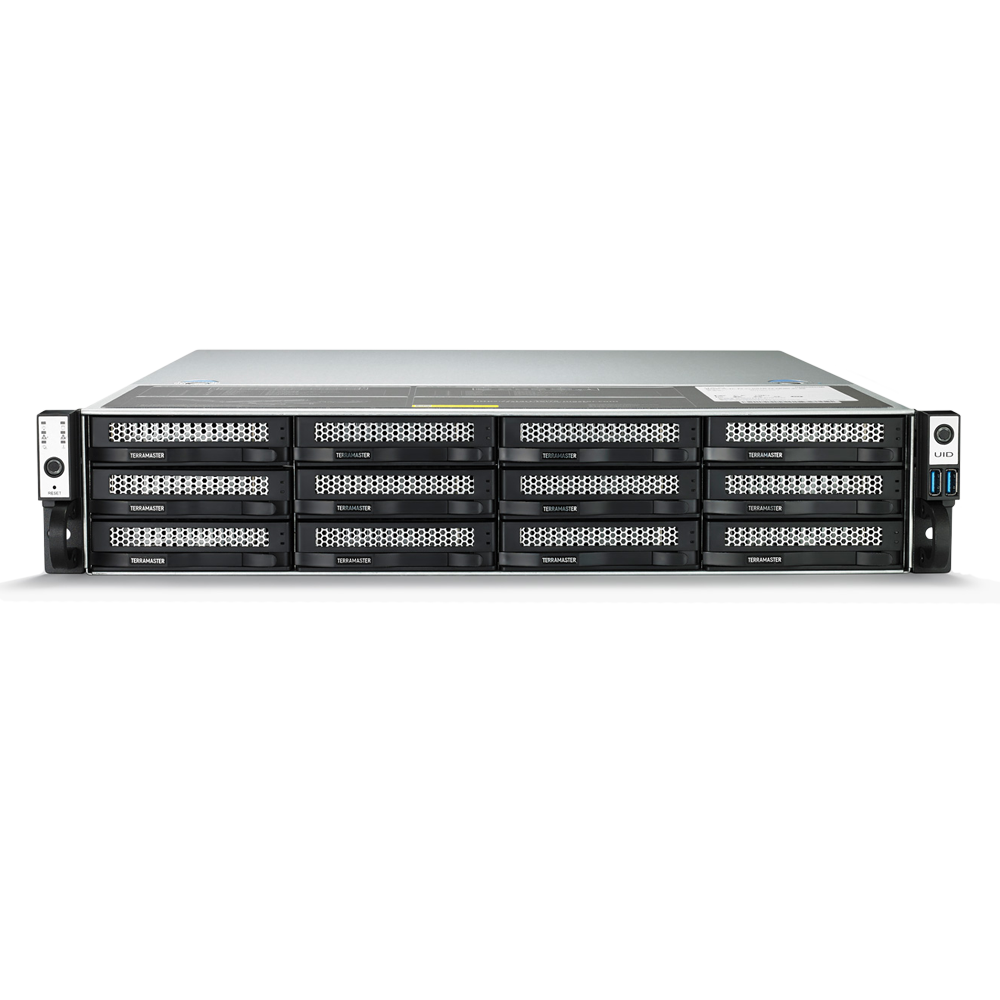

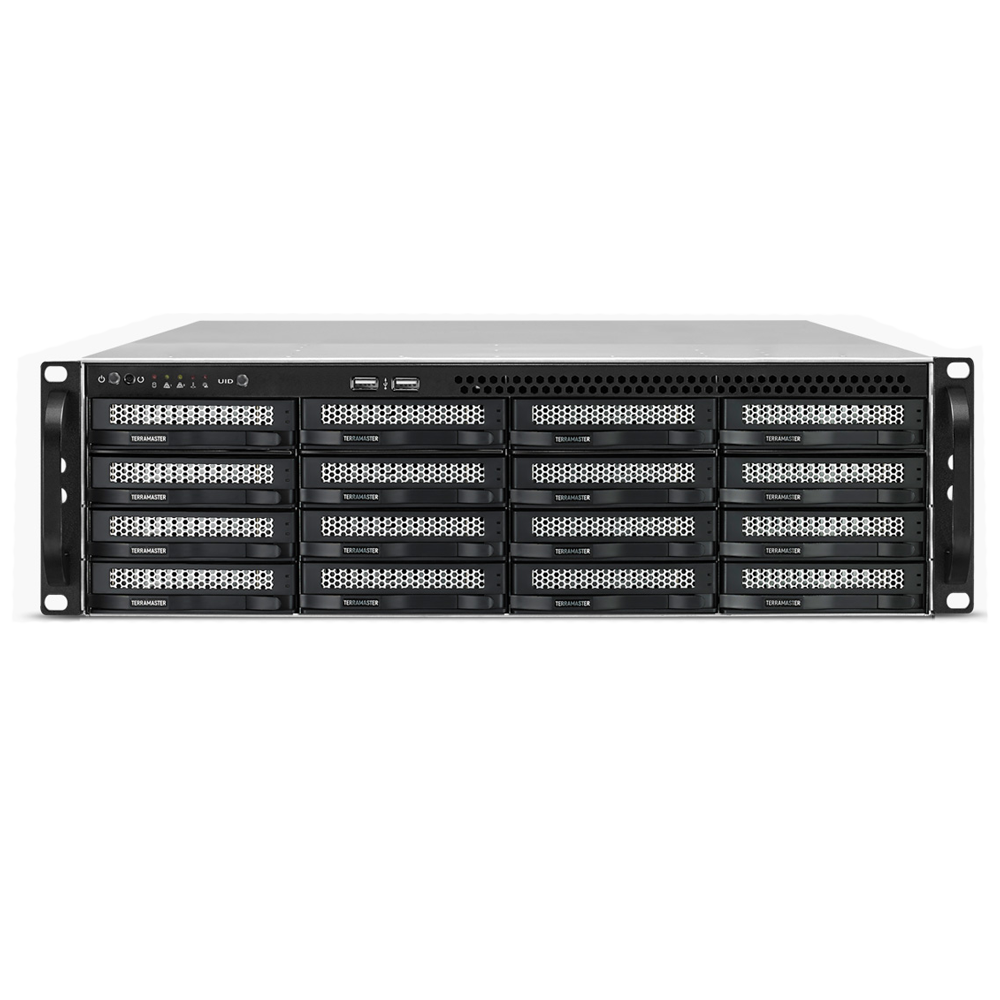

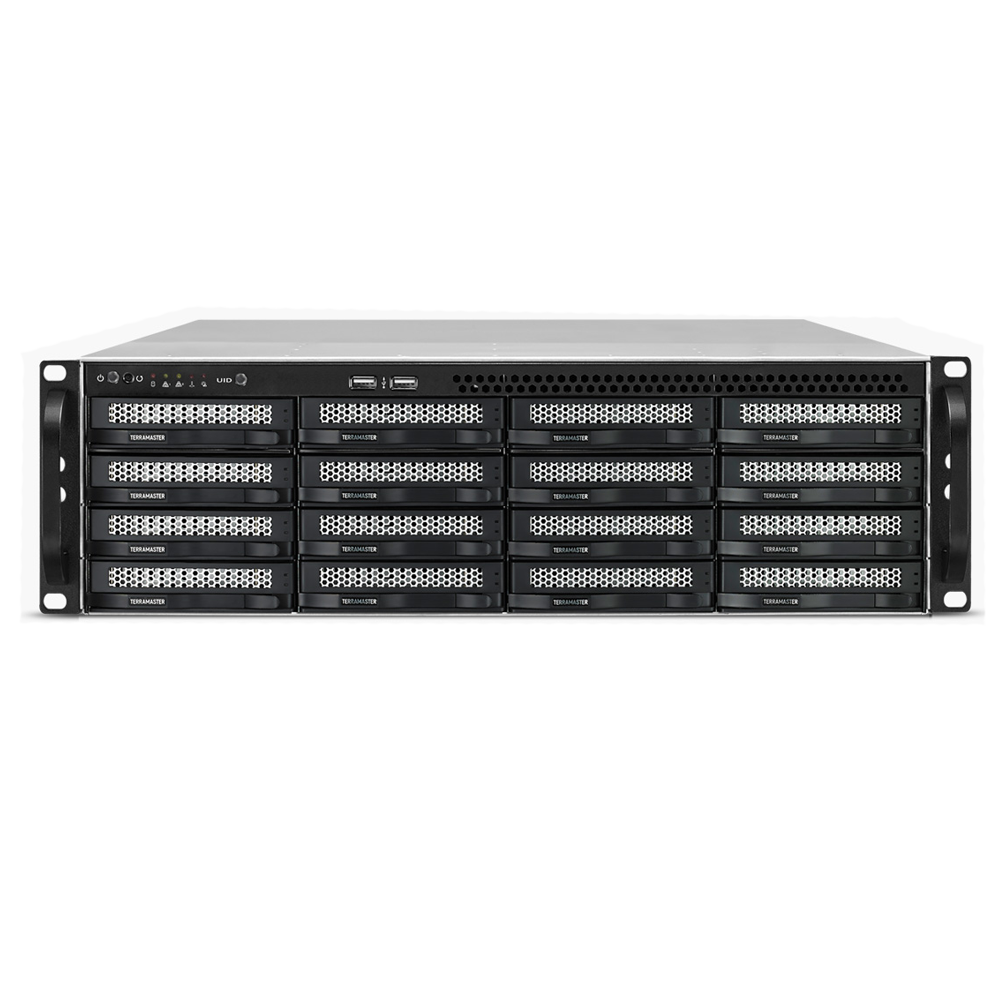

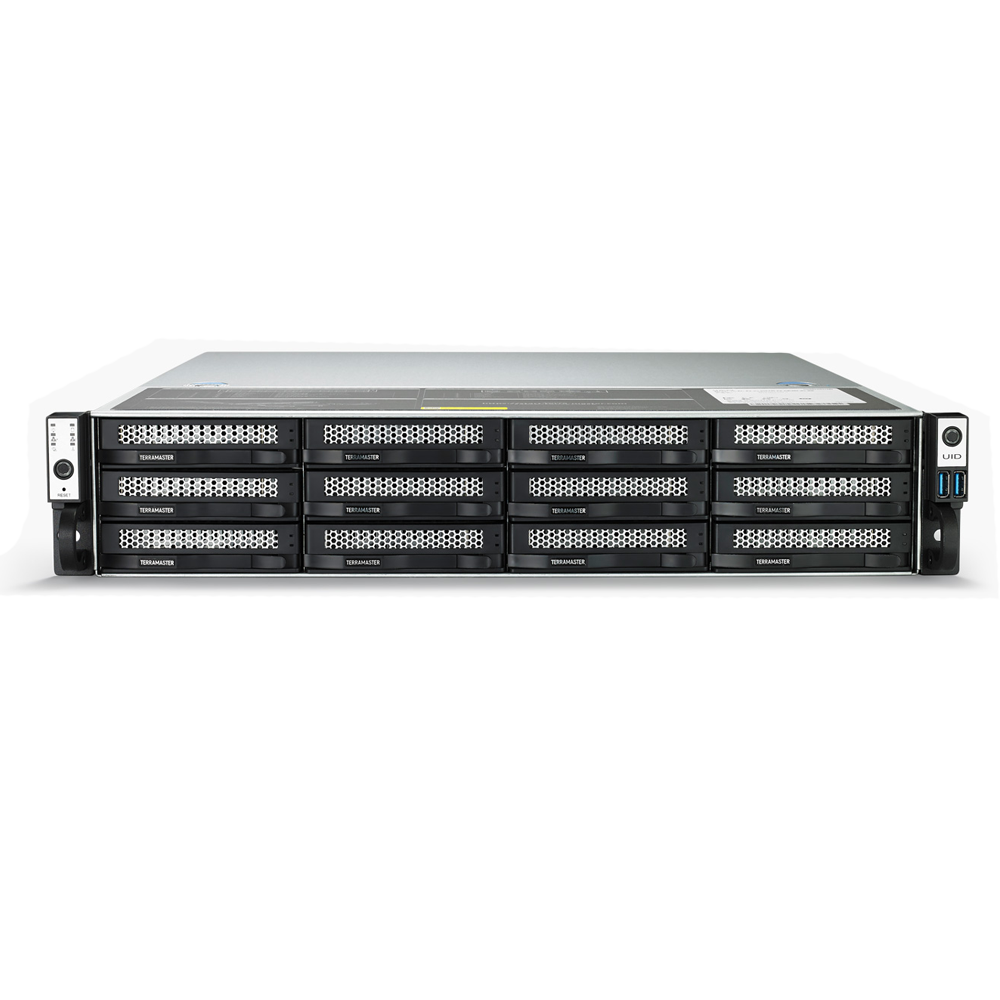

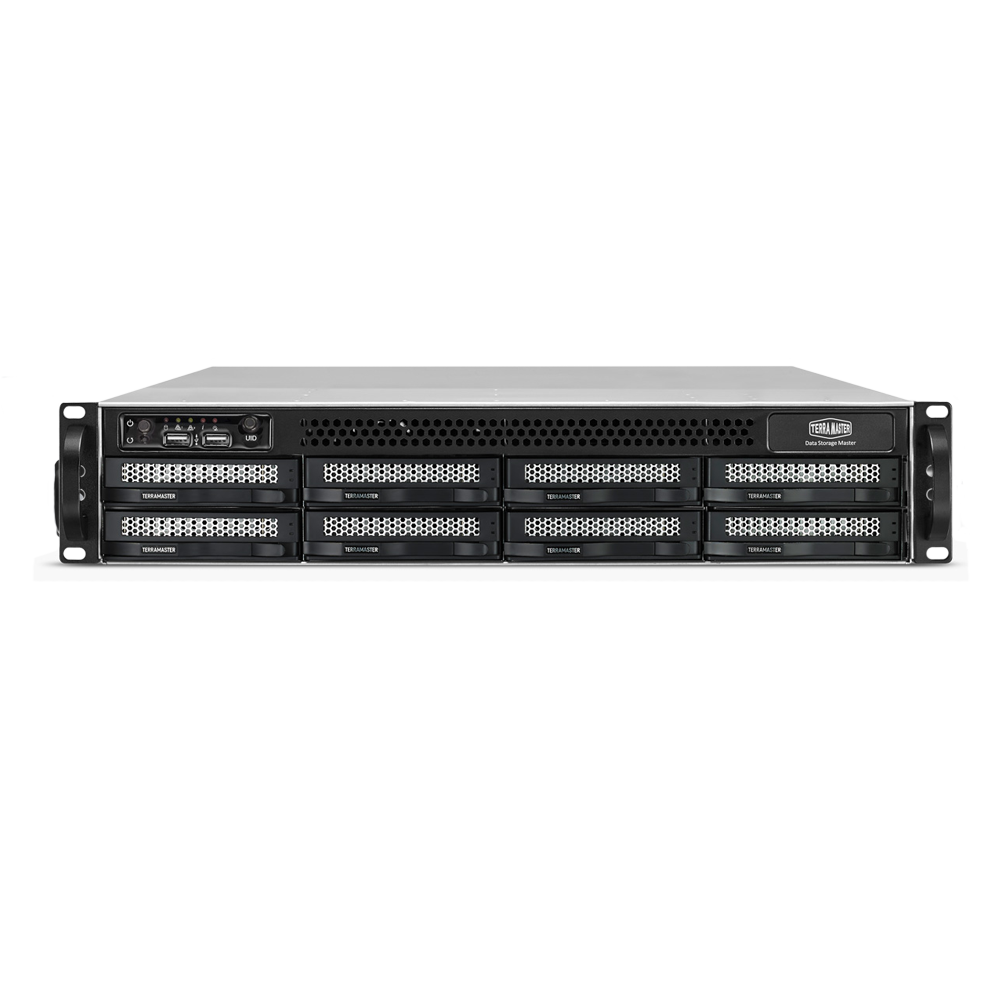

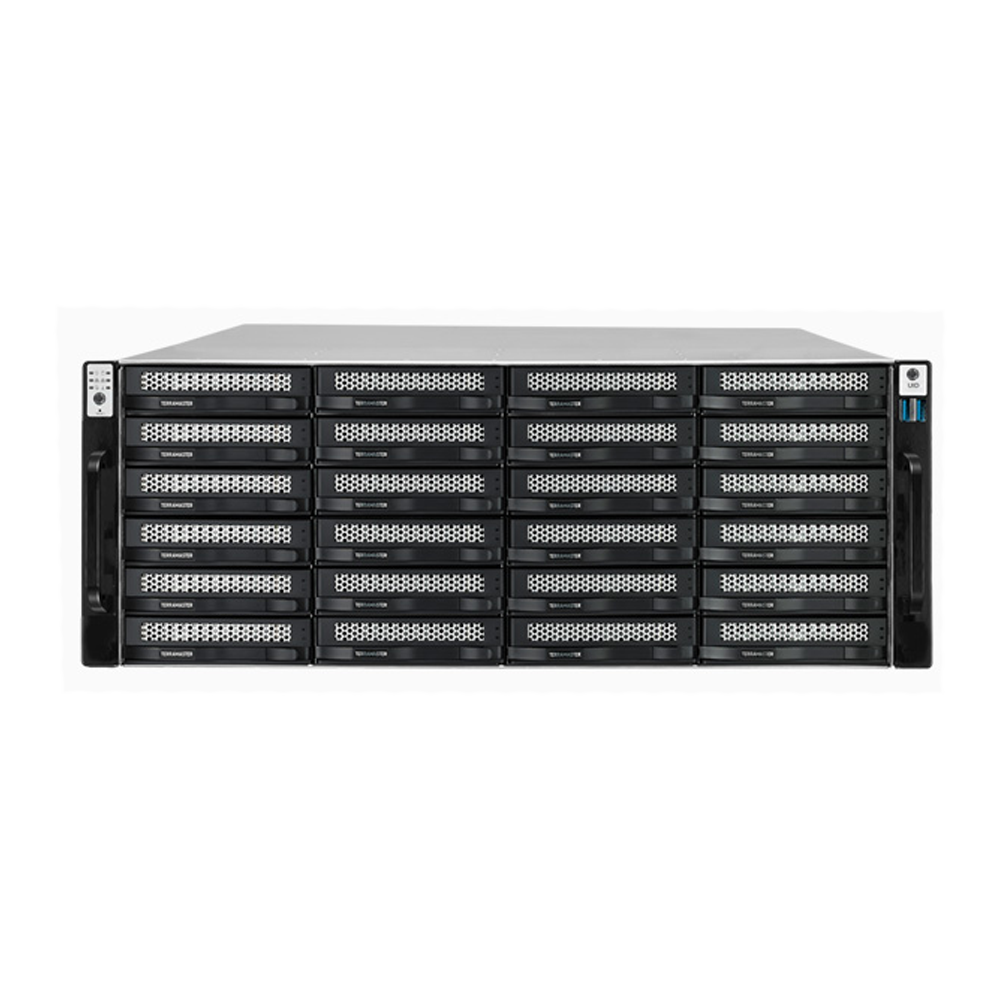

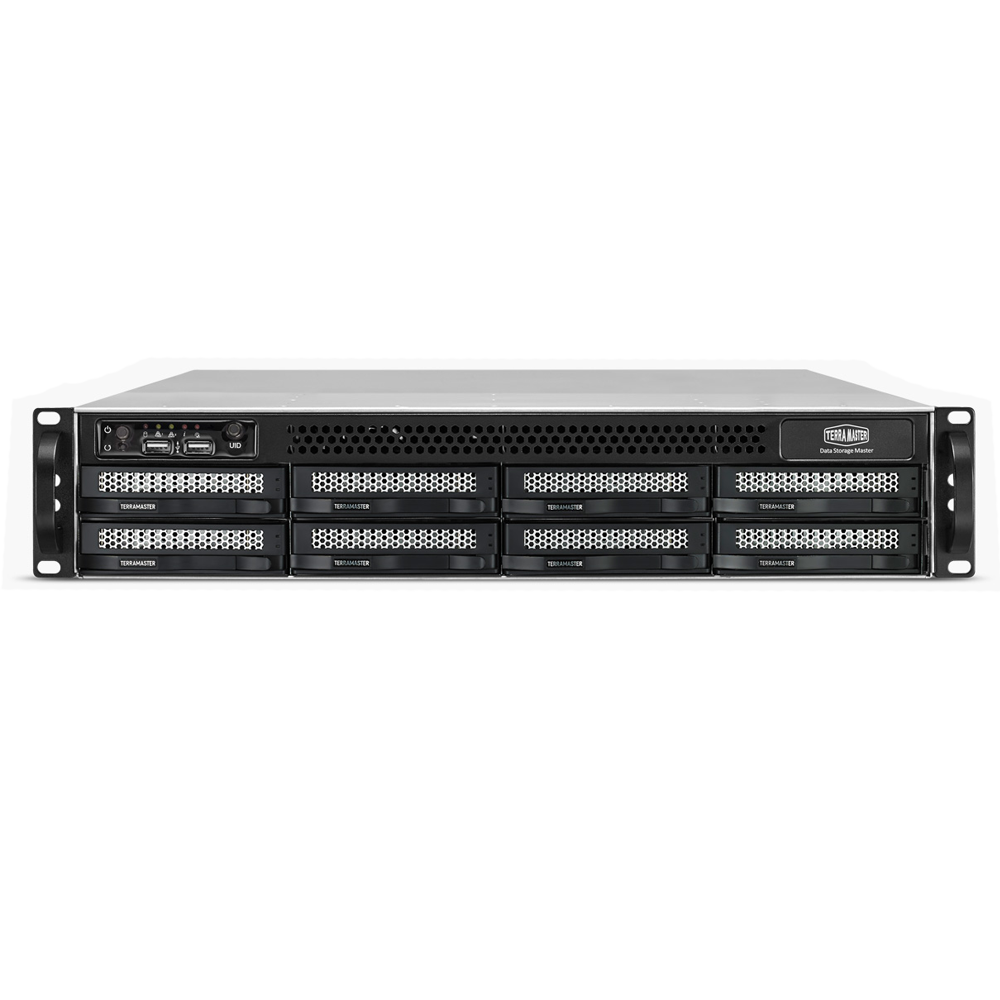

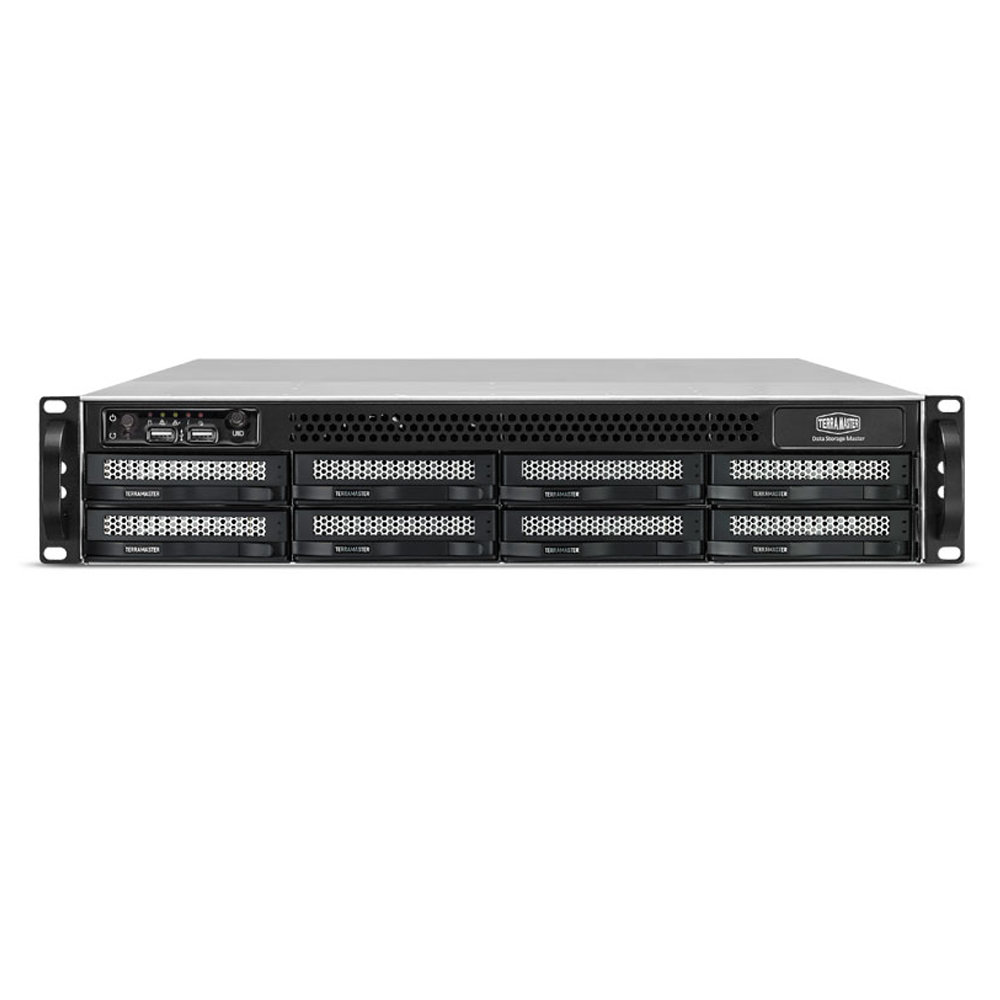

| DDR4-3200 non-ECC UDIMM | Earlier U-series rackmount models; the number after the second dash names the processor, for example -2224 for the Intel Xeon E-2224. | U8-722-2224, U12-722-2224, U16-722-2224, U24-722-2224, U8-522-9400, U8-322-9100, U12-322-9100, U16-322-9100 |

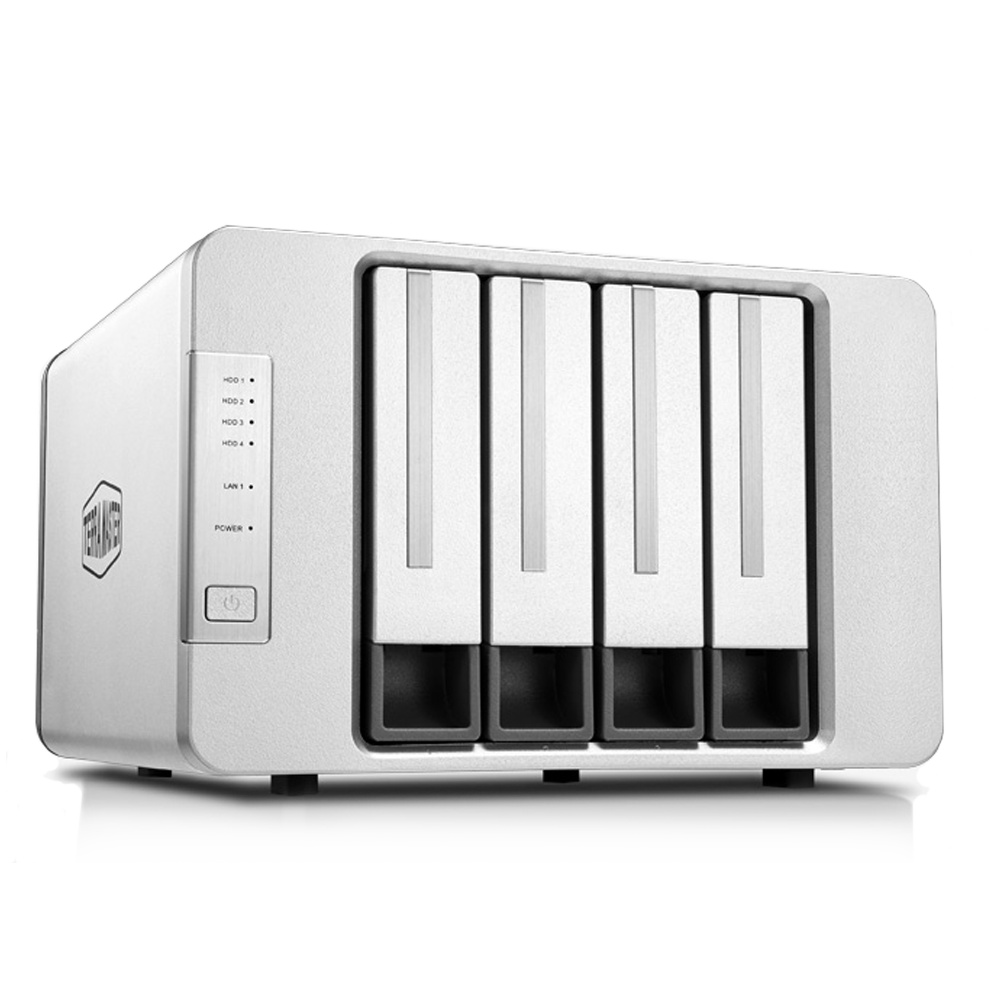

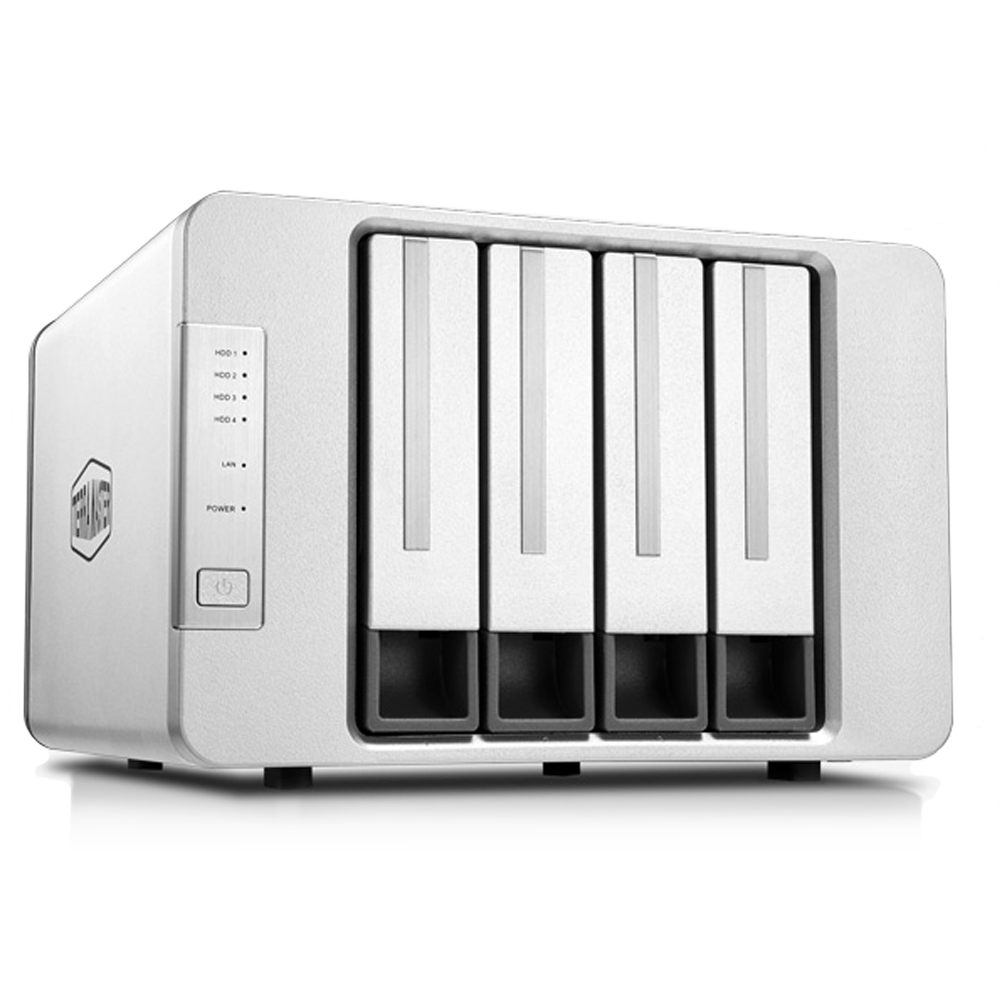

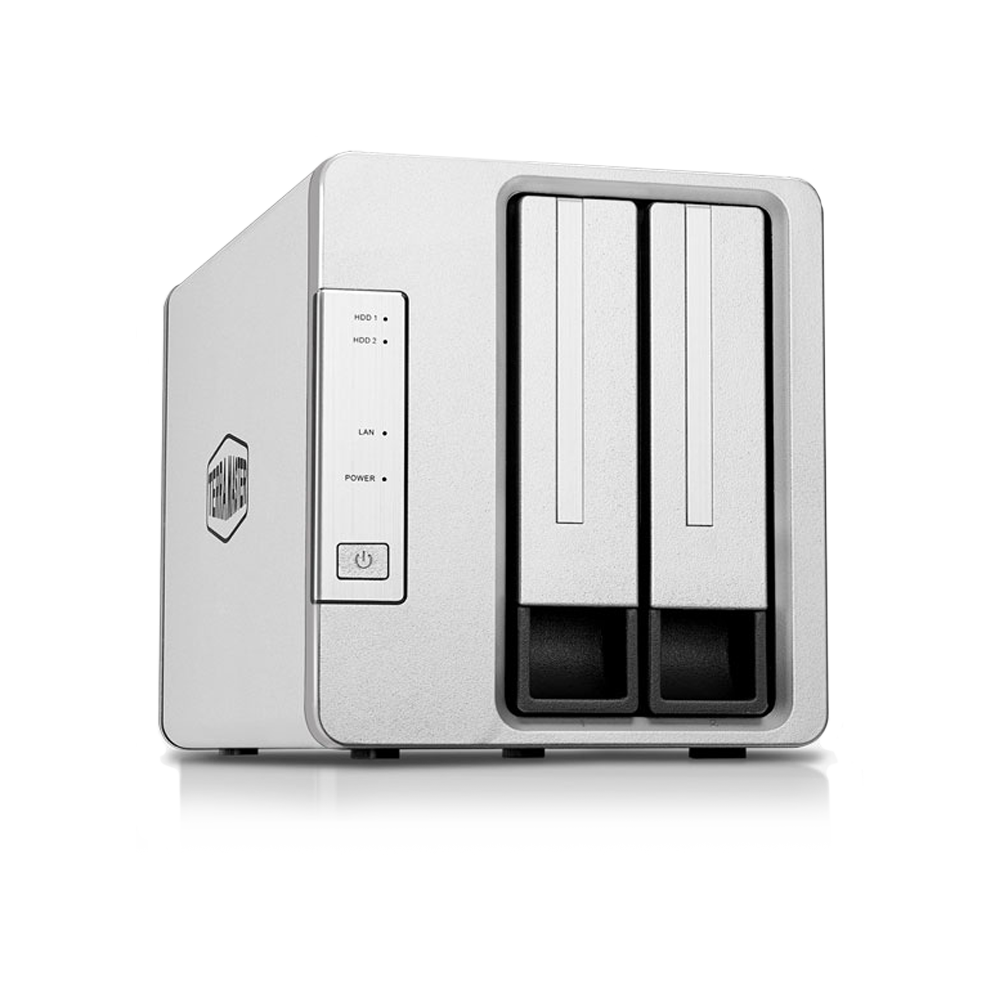

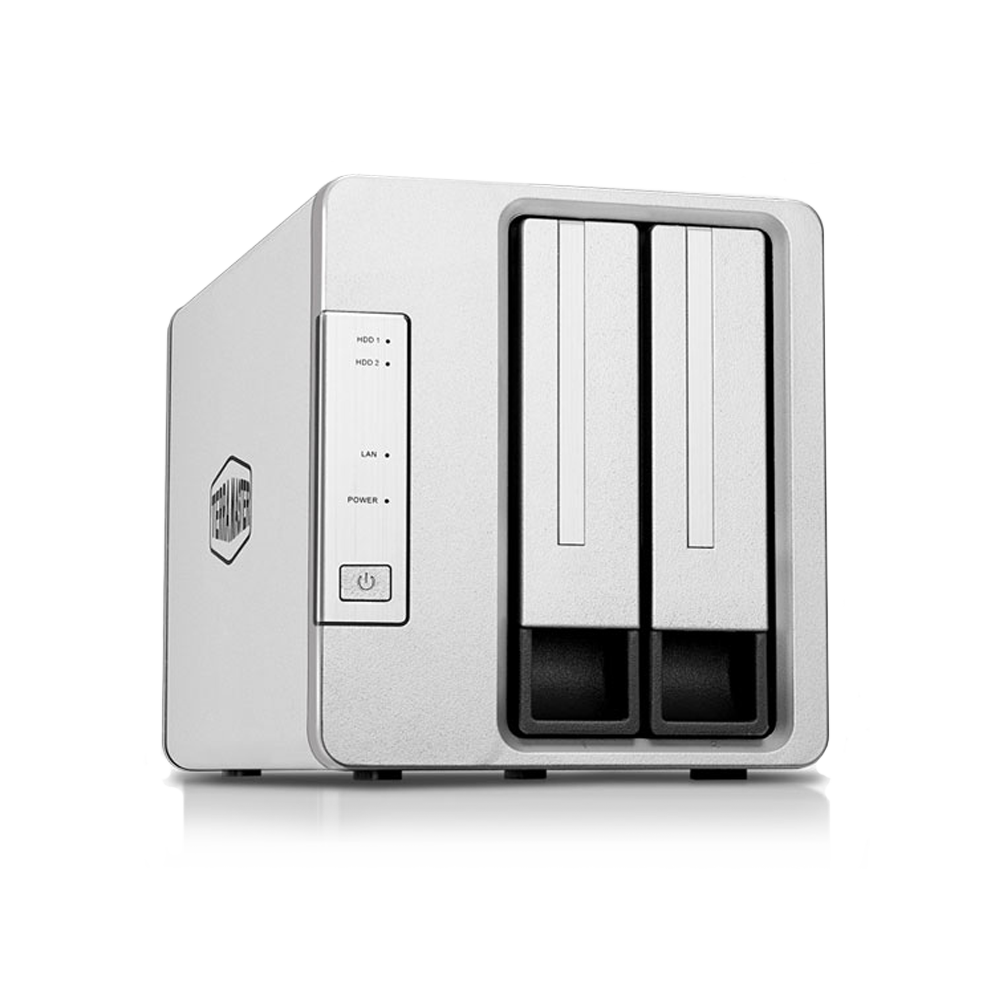

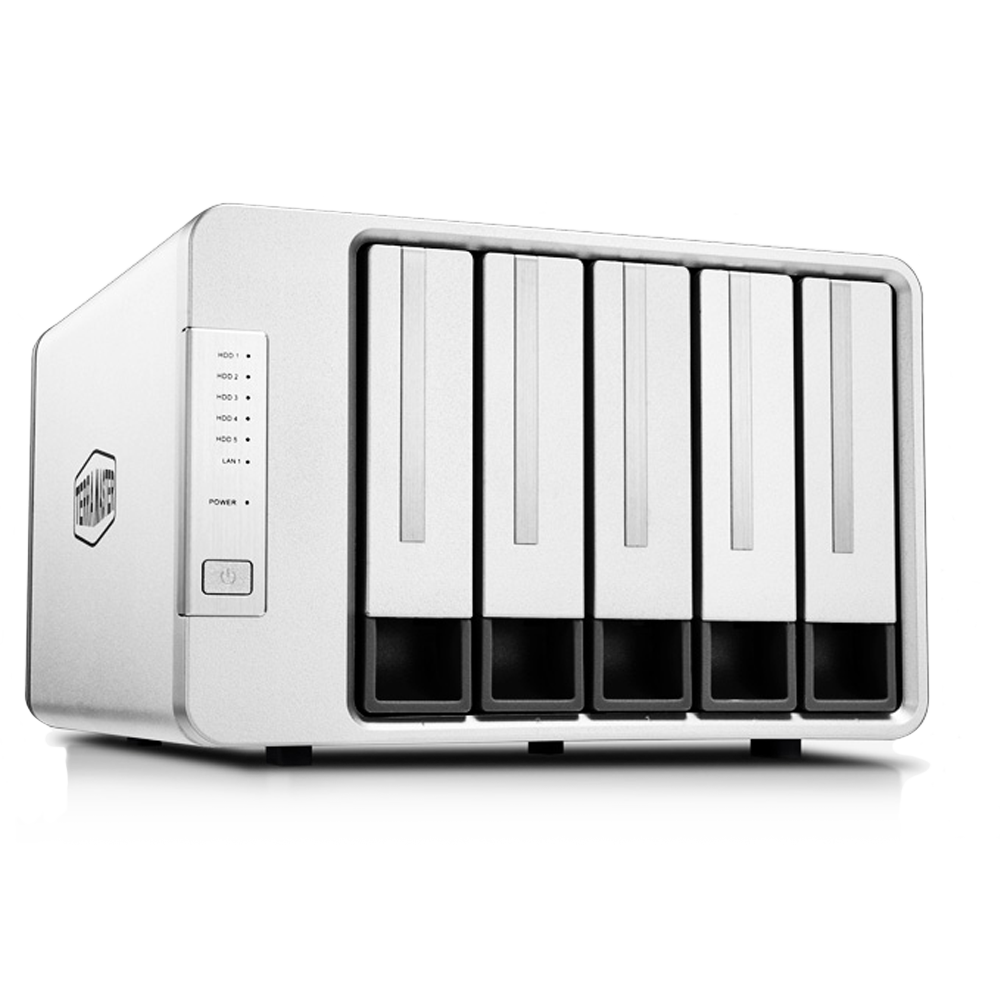

| DDR3L-1600 SODIMM (1.35V) | Earlier F-series desktop models. | F2-221, F5-221, F4-421, F2-422, F4-422 |
TerraMaster memory part numbers
If you are matching a TerraMaster module, or ordering from a TerraMaster part list, these listings cross-reference TerraMaster's own memory part numbers. See all of them in TerraMaster OEM compatible memory.
| TerraMaster part | Module | For |
|---|---|---|
| A-SRAMD5-8G | 8GB DDR5-4800 SODIMM | F-424, F-425 Plus, T-500 and U-500 series |
| A-SRAMD5-16G | 16GB DDR5-4800 SODIMM | F-424, F-425 Plus, T-500 and U-500 series |
| A-SRAMD5-32G | 32GB DDR5-4800 SODIMM | F-424, F-425 Plus, T-500 and U-500 series |
| A-SRAMD4-16G | 16GB DDR4-3200 SODIMM | F-223, F-423, F-425, T-423, T-450, U-423 and U8-450 |
| A-SRAMD4-8G | 8GB DDR4-3200 SODIMM | F-223, F-423, F-425, T-423, T-450, U-423 and U8-450 |
| A-SRAMD4-4G | 4GB DDR4-2400 SODIMM | F-223, F-423, F-425, T-423, T-450, U-423 and U8-450 |
| A-URAMD4-16G | 16GB DDR4-3200 non-ECC UDIMM | U-722-2224, U-322-9100 and U8-522-9400 |
| A-SRAMD3-4G | 4GB DDR3L-1600 SODIMM | F-221, F-421 and F-422 series, F8-421, U4-111 and U8-111 |
TerraMaster models with memory that cannot be upgraded
The F4-212 runs an ARM processor with 2GB of memory and no memory slot, so it takes no memory module.
Rules that apply across TerraMaster NAS
- Match the generation and form factor. DDR5 SODIMM, DDR4 SODIMM, DDR4 UDIMM and DDR3L SODIMM are keyed differently and will not fit each other's slots.
- ECC only where TerraMaster specifies it. The U-725 series takes ECC DDR4 UDIMMs; the F-series and T-series take non-ECC SODIMMs. Do not mix ECC and non-ECC modules, and do not use registered RDIMMs.
- Single-slot models take one module. Replace the installed module with the capacity you need, up to the listed maximum.
- Two-slot models run best with a matched pair. Install identical modules for dual-channel operation, or add one module matching the installed one.
Why NEMIX RAM for TerraMaster memory
NEMIX RAM is a US-based memory specialist, in business since 1993. Every module is researched, matched, and compatibility-tested by NEMIX RAM, is JEDEC-compliant, and is backed by a lifetime warranty. Each TerraMaster listing names the exact model it fits, using the slot count and maximum TerraMaster publishes for it.
MSPs, backup targets and small-business IT
TerraMaster NAS and rackmount systems serve as backup targets, file servers and surveillance storage for small businesses, managed service providers and branch offices. Purchase orders, net terms and volume pricing are available for MSPs, system integrators, resellers, schools and government buyers. Request a quote for a fleet of NAS units or a rack refresh, or send us your TerraMaster model numbers and we will confirm the right module before you order.
Frequently asked
Do the Pro, Plus and Max versions take the same memory as the base model?
Not always. The F4-424 takes one DDR5 module, the F4-424 Max takes two, and the F4-425 takes DDR4 while the F4-425 Plus takes DDR5. Each version has its own listing; search your full model name.
Can I use ECC memory in my TerraMaster F-series or T-series NAS?
No. Those models take non-ECC SODIMMs. ECC memory is for the U-725 rackmount series, which takes ECC DDR4 UDIMMs.
How much memory can I install?
Each listing states the slot count and the maximum TerraMaster specifies for that model, and the sizes offered stay within it: 32GB on most single-slot DDR5 models, 64GB on two-slot DDR5 models, and 16GB on the F2-425 and F4-425.
Can I add a NEMIX RAM module to the memory already installed?
On two-slot models, yes, if the new module matches the installed one in generation, capacity and speed. On single-slot models, the new module replaces the installed one.
