Intel Compute Module Memory: D50DNP, D50TNP, HNS2600 & S9200WK Modules

28 products

Showing 1 - 24 of 28 products

Memory upgrades for Intel compute modules: the server nodes that slide into Intel multi-node chassis. Each listing covers one Intel module SKU, using the memory type, speed and module size of that node. To find yours, type the module model into the search bar at the top of the page, for example D50DNP1MHCPAC, D50TNP1MHCRAC, HNS2600BPB, HNS2600TPFR or S9248WK1HLC. The model is on the module label and on your order paperwork.

Memory is installed per node: every module in a chassis has its own slots and needs its own set of modules. In the Intel FC2000 chassis this includes the D50DNP and D50TNP management, storage and accelerator modules as well as the compute modules.

4th and 5th Gen Intel Xeon Scalable platforms

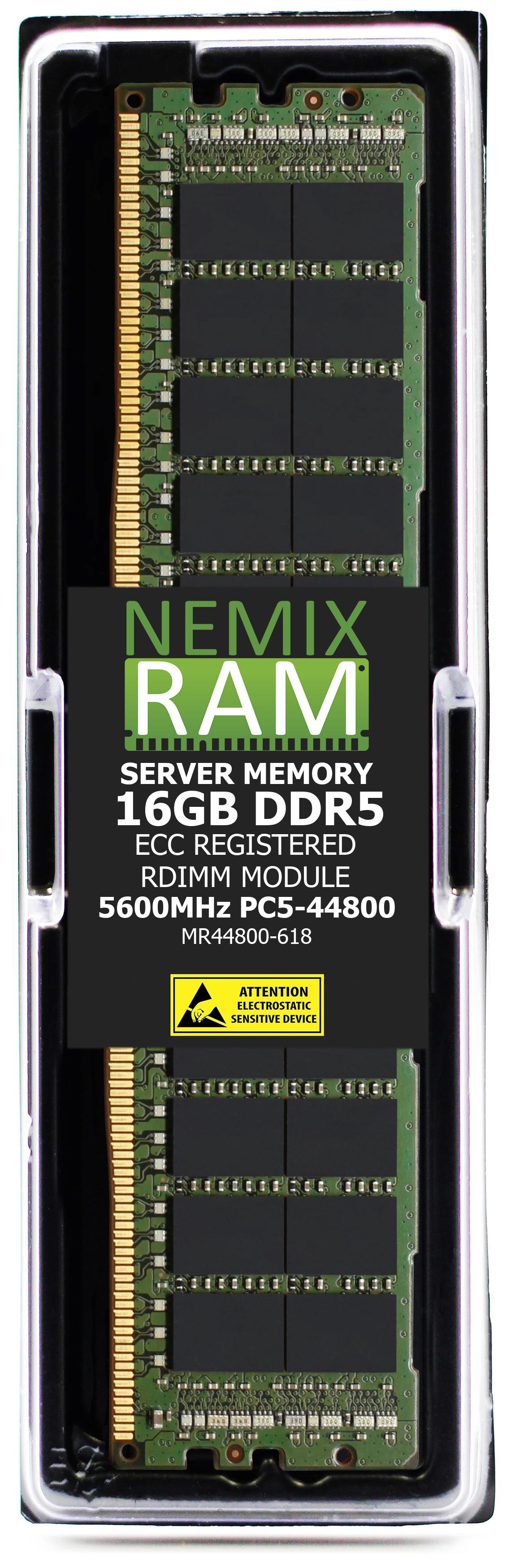

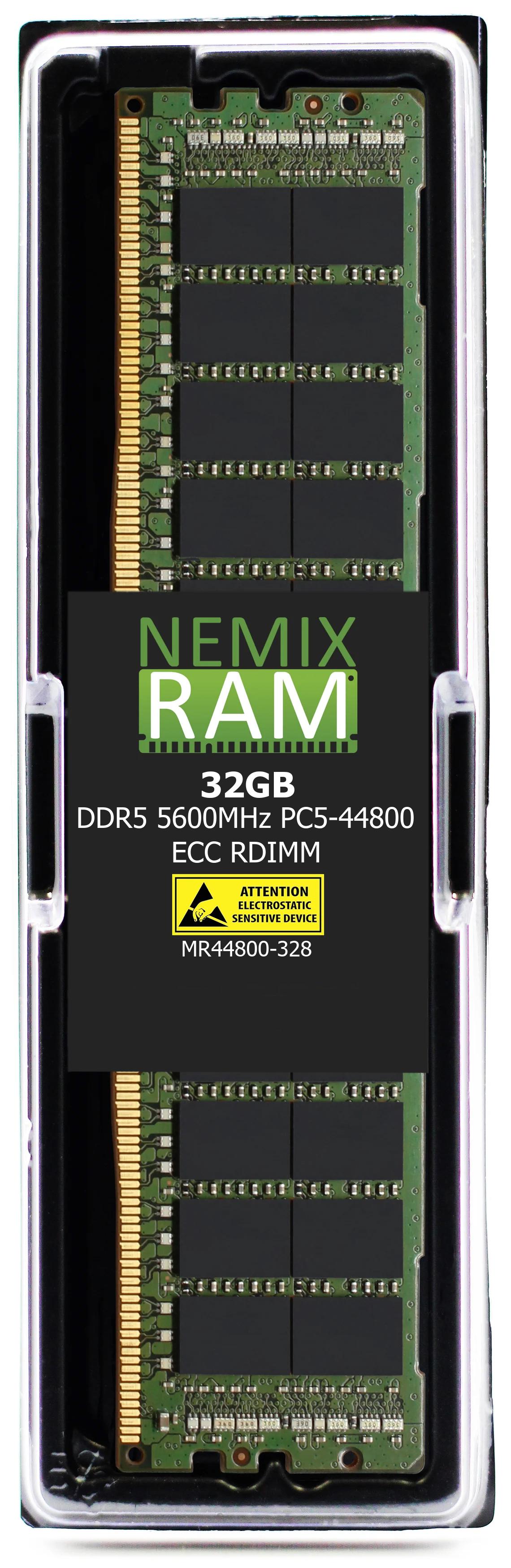

DDR5 registered memory (RDIMM) only; these listings are 16GB to 128GB DDR5-5600 ECC RDIMMs (PC5-44800, 1.1V). They run at 5600 MT/s with 5th Gen processors and 4800 MT/s with 4th Gen at one module per channel, and at up to 4400 MT/s at two modules per channel. DDR4 modules do not fit these platforms.

D50DNP family (16 slots per board or node): compute modules D50DNP1MHCPAC, D50DNP1MHCPLC, D50DNP1MHEVAC, D50DNP2MHSVAC, D50DNP1MFALLC, D50DNP2MFALAC. Modules for the Intel FC2000 multi-node chassis; the compute, management, storage and accelerator modules each take their own memory.

3rd Gen Intel Xeon Scalable platforms

DDR4 registered memory; these listings are 16GB to 128GB DDR4-3200 ECC RDIMMs (PC4-25600, 1.2V), which run at DDR4-3200, or at the processor's rated memory speed if that is lower.

D50TNP family (16 slots per board or node): compute modules D50TNP1MHCPAC, D50TNP1MHCRAC, D50TNP1MHCRLC, D50TNP2MHSVAC, D50TNP2MHSTAC, D50TNP2MFALAC. Modules for the Intel FC2000 multi-node chassis; the compute, management, storage and accelerator modules each take their own memory.

1st and 2nd Gen Intel Xeon Scalable platforms

DDR4 registered memory. Each model has two listings: a 64GB DDR4-2666 LRDIMM (PC4-21300, 4Rx4, 1.2V), and 16GB, 32GB and 64GB DDR4-2933 RDIMMs (PC4-23400, 1.2V) in kits; 64GB RDIMMs need 2nd Gen processors. Modules run at their rated speed, or at the processor's rated memory speed if that is lower.

S2600BP family (16 slots per board or node): compute modules HNS2600BPB, HNS2600BPB24.
S9200WK family (24 slots per board or node): compute modules S9248WK1HLC, S9248WK2HAC, S9256WK1HLC. Install identical modules in groups of 8, 16 or 24.

Intel Xeon E5-2600 v3 and v4 platforms

DDR4 registered memory. Each model has two listings: a 64GB DDR4-2666 LRDIMM, and 16GB and 32GB DDR4-2400 RDIMMs (PC4-19200, 1.2V) in kits. Both run at the platform speed (DDR4-2400 with v4 processors, DDR4-2133 with v3).

S2600TP family (16 slots per board or node): compute modules HNS2600TP24R, HNS2600TP24SR, HNS2600TPFR.

Installation rules

Do not mix LRDIMMs with RDIMMs, or registered modules with ECC UDIMMs, in the same system. DDR4 and DDR5 modules are keyed differently and are not interchangeable.
Install identical modules across each processor's memory channels for full bandwidth: groups of eight per processor on 3rd, 4th and 5th Gen Xeon Scalable platforms (M50CYP, M50FCP, M20NTP, D50TNP, D50DNP), six per processor on the M70KLP and on 1st and 2nd Gen Xeon Scalable boards, four per processor on Xeon E5 v3/v4 boards, three per channel group on the S7200AP, and matched pairs on S1200SP boards.
Each listing names the exact module it fits. If you need a module type or size that is not listed for your platform, contact us before ordering.

Buying in volume direct from NEMIX RAM

NEMIX RAM is a US-based server memory specialist, in business since 1993. Every module is researched, matched, and compatibility-tested by NEMIX RAM, is JEDEC-compliant, and is backed by a lifetime warranty. Purchase orders, net terms and volume pricing are available for data centers, HPC sites, research labs, universities, government buyers and resellers. Request a quote for every node in a chassis or a full cluster.
