Technical Specifications
RDIMM for MiTAC TYAN TN85-B8261
Module Density: 32GB
Form Factor: RDIMM
Technology Speed: DDR5 6400MHz PC5-51200
Rank: 2Rx8
Voltage: 1.1V
ECC: ECC
Buffered: Buffered
Compatible Machines: MiTAC TYAN TN85-B8261
MiTAC TYAN TN85-B8261
The MiTAC TYAN TN85-B8261 supports 24 slots of upgradable memory, with a maximum capacity of 6TB. It is compatible with our RDIMM modules for high-performance operation.
NEMIX RAM memory upgrades for the MiTAC TYAN TN85-B8261 are backed by a lifetime replacement warranty.
Our modules are researched, matched, and compatibility-tested using top-tier components from leading suppliers such as Samsung, Micron, and Hynix, ensuring compliance with
industry standards like JEDEC and CE requirements.
Description

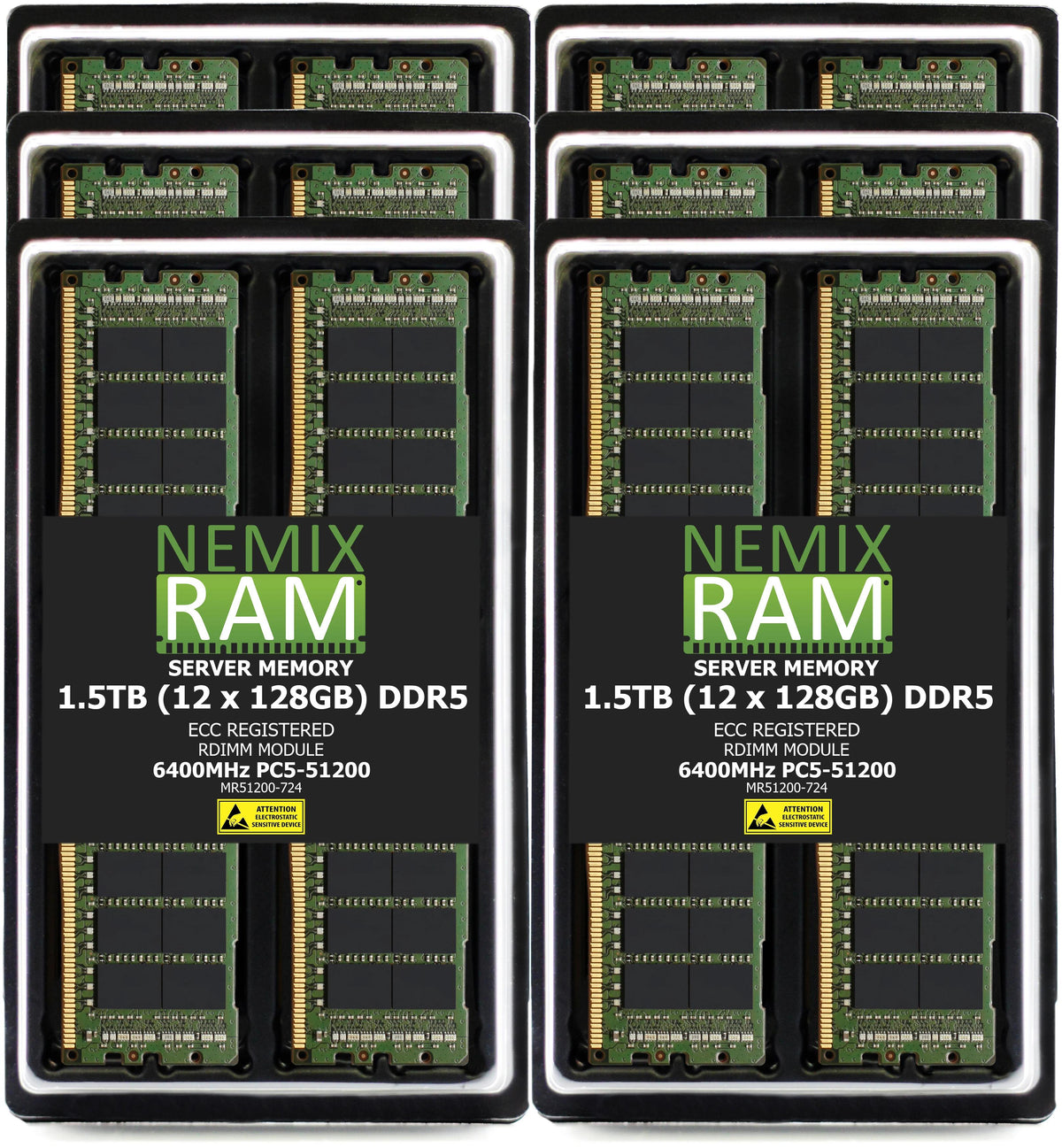

NEMIX RAM memory upgrades for the MiTAC TYAN TN85-B8261: DDR5-6400 PC5-51200 ECC Registered (RDIMM) modules, 32GB to 128GB, sold as single modules and matched kits of up to 16, selected as drop-in, compatibility-tested replacements. 1.1V, 288-pin, JEDEC-compliant.
The TN85-B8261 is a 2U dual-socket HPC and GPU server for AMD EPYC 9005 and 9004 series processors. It has 24 DDR5 DIMM slots and supports up to 6TB per MiTAC specifications; the 128GB modules NEMIX offers reach 3TB. MiTAC lists DDR5-6000 and DDR5-6400 RDIMM depending on the model. The memory runs at the speed the installed processor and slot population support. This platform takes DDR5 ECC Registered memory (RDIMM); unbuffered UDIMMs and DDR4 modules will not work. MiTAC also lists 3DS RDIMM, LRDIMM or MRDIMM options on some platforms; NEMIX offers standard RDIMM. Install identical modules in matched sets, populating the slots in the order MiTAC gives for your processor, and use one module size throughout.
Researched, matched, and compatibility-tested by NEMIX RAM, a US-based server memory specialist since 1993, and backed by a lifetime warranty. Purchase orders, net terms, and volume pricing are available for fleet refreshes and data center upgrades of MiTAC TYAN systems; contact our sales team for a quote.
