Technical Specifications
LRDIMM for Fujitsu PRIMERGY TX300 S7
Module Density: 32GB
Form Factor: LRDIMM
Technology Speed: DDR3 1333MHz PC3L-10600
Rank: 4Rx4
Voltage: 1.35V
ECC: ECC
Buffered: Buffered
Compatible Machines: Fujitsu PRIMERGY TX300 S7
Fujitsu PRIMERGY TX300 S7
The Fujitsu PRIMERGY TX300 S7 supports 24 slots of upgradable memory, with a maximum capacity of 768GB. It is compatible with our LRDIMM modules for high-performance operation.
NEMIX RAM memory upgrades for the Fujitsu PRIMERGY TX300 S7 are backed by a lifetime replacement warranty.
Our modules are researched, matched, and compatibility-tested using top-tier components from leading suppliers such as Samsung, Micron, and Hynix, ensuring compliance with
industry standards like JEDEC and CE requirements.
ALTERNATE CONFIGURATION SOLUTIONS
Also available for this machine
Memory speed and module type are not interchangeable — choose the page that matches your system.
Description

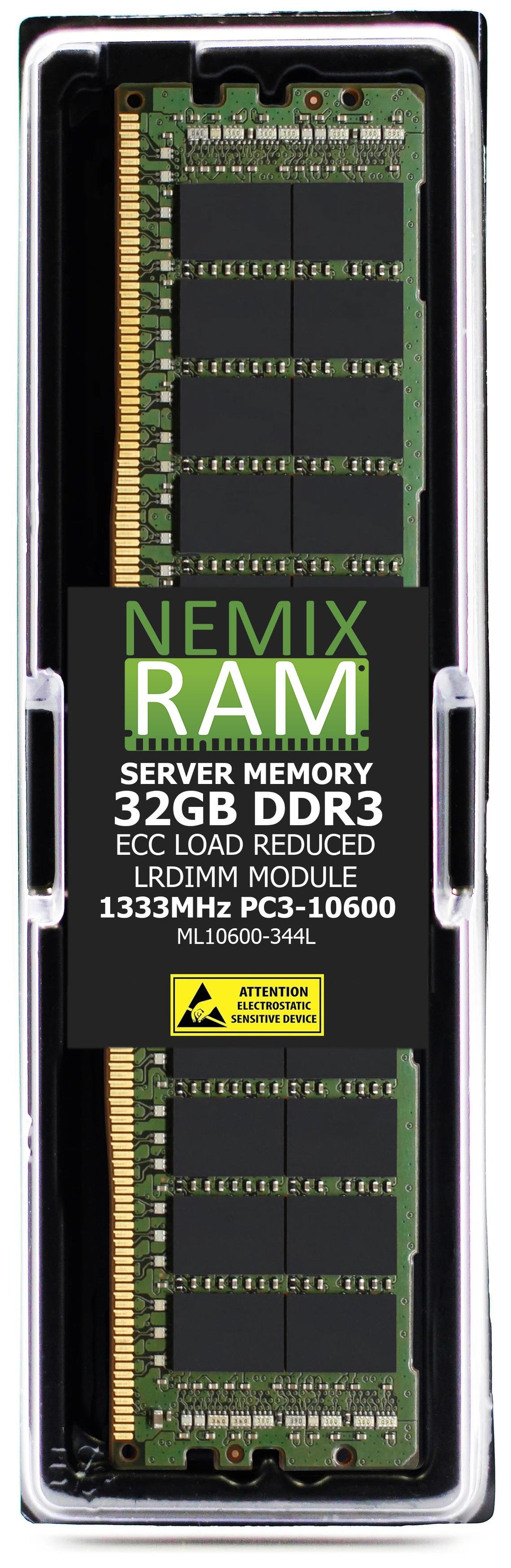

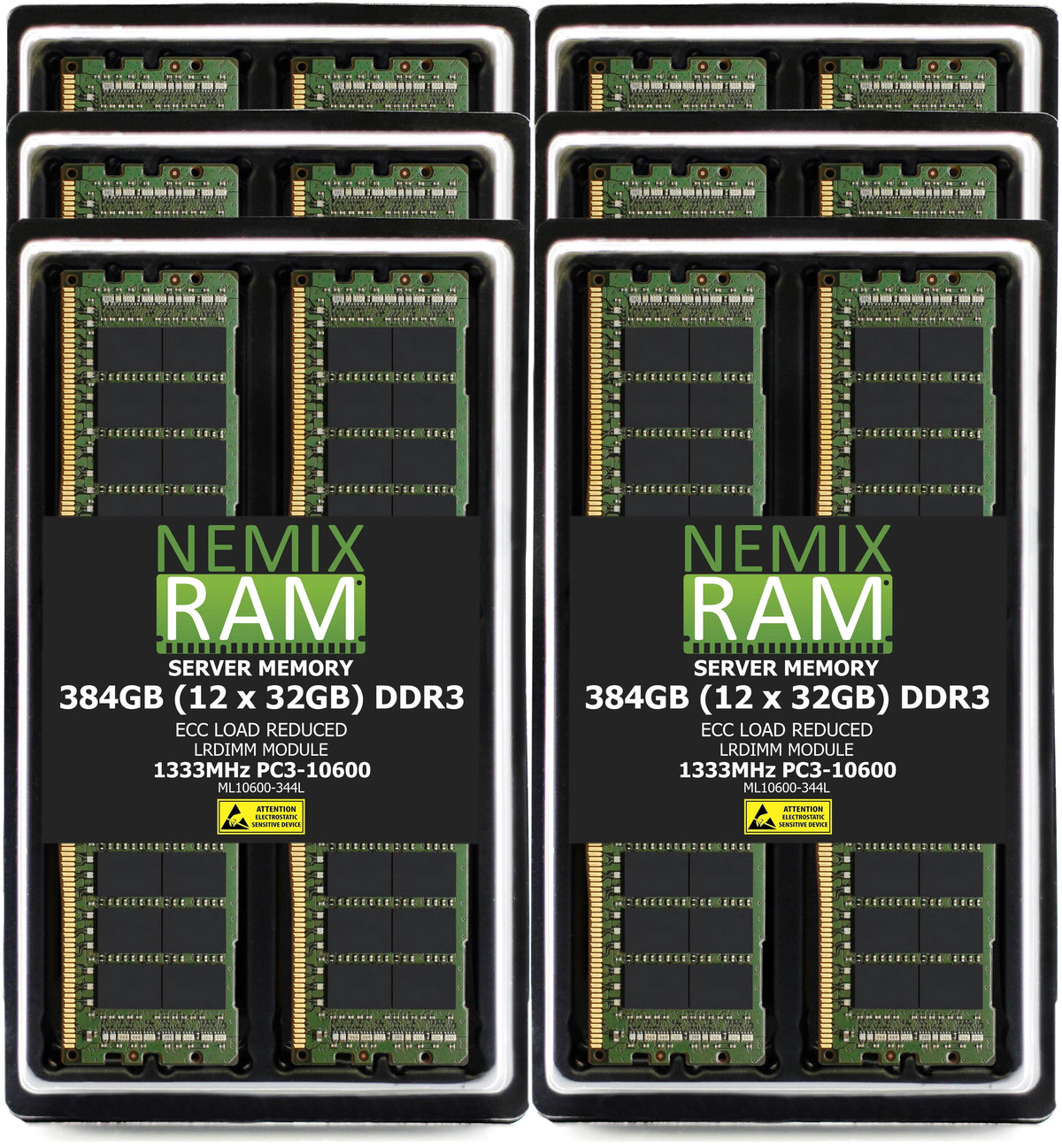

NEMIX RAM memory upgrades for the Fujitsu PRIMERGY TX300 S7: DDR3-1333 PC3L-10600 ECC Load-Reduced (LRDIMM) modules, 32GB, sold as single modules and matched kits of up to 16, selected as drop-in, compatibility-tested replacements. 1.35V, 240-pin, JEDEC-compliant.
The PRIMERGY TX300 S7 is a dual-socket tower server for up to two Intel Xeon E5-2600 processors. It has 24 DDR3 DIMM slots and supports up to 384GB with 16GB RDIMMs or 768GB with 32GB LRDIMMs. Fujitsu supports 32GB quad-rank DDR3-1333 low-voltage (1.35V) LRDIMMs for this server. Memory never runs faster than the processor's memory bus allows. This server takes DDR3 ECC Registered (RDIMM) or Load-Reduced (LRDIMM) memory; Fujitsu does not allow mixing RDIMMs and LRDIMMs, and unbuffered UDIMMs will not work. LRDIMMs are the route to the maximum capacity. Install identical modules in matched sets, in the slot order Fujitsu gives for each processor, and use one module size throughout.
Researched, matched, and compatibility-tested by NEMIX RAM, a US-based server memory specialist since 1993, and backed by a lifetime warranty. Purchase orders, net terms, and volume pricing are available for fleet refreshes and data center upgrades of Fujitsu PRIMERGY servers; contact our sales team for a quote.
