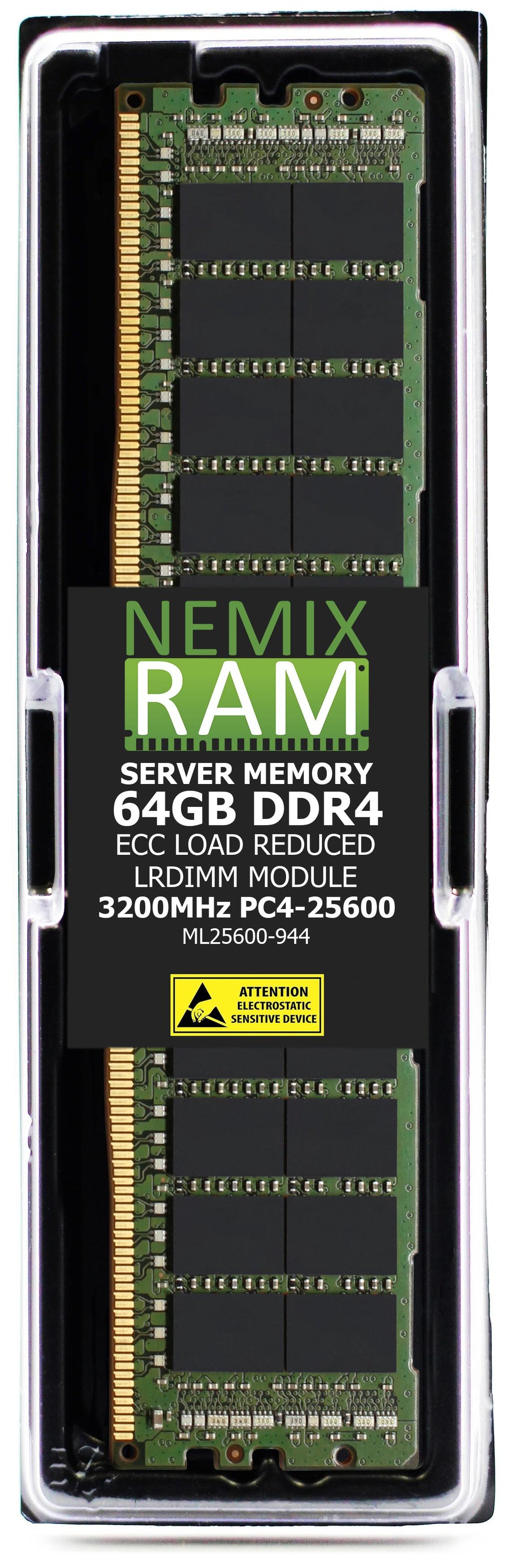

Technical Specifications
LRDIMM for Fujitsu PRIMERGY RX2530 M6
Module Density: 64GB
Form Factor: LRDIMM
Technology Speed: DDR4 3200MHz PC4-25600
Rank: 4Rx4
Voltage: 1.2V
ECC: ECC
Buffered: Buffered
Compatible Machines: Fujitsu PRIMERGY RX2530 M6
Fujitsu PRIMERGY RX2530 M6
The Fujitsu PRIMERGY RX2530 M6 supports 32 slots of upgradable memory, with a maximum capacity of 4TB. It is compatible with our LRDIMM modules for high-performance operation.
NEMIX RAM memory upgrades for the Fujitsu PRIMERGY RX2530 M6 are backed by a lifetime replacement warranty.
Our modules are researched, matched, and compatibility-tested using top-tier components from leading suppliers such as Samsung, Micron, and Hynix, ensuring compliance with
industry standards like JEDEC and CE requirements.
ALTERNATE CONFIGURATION SOLUTIONS
Also available for this machine
Memory speed and module type are not interchangeable — choose the page that matches your system.
Description

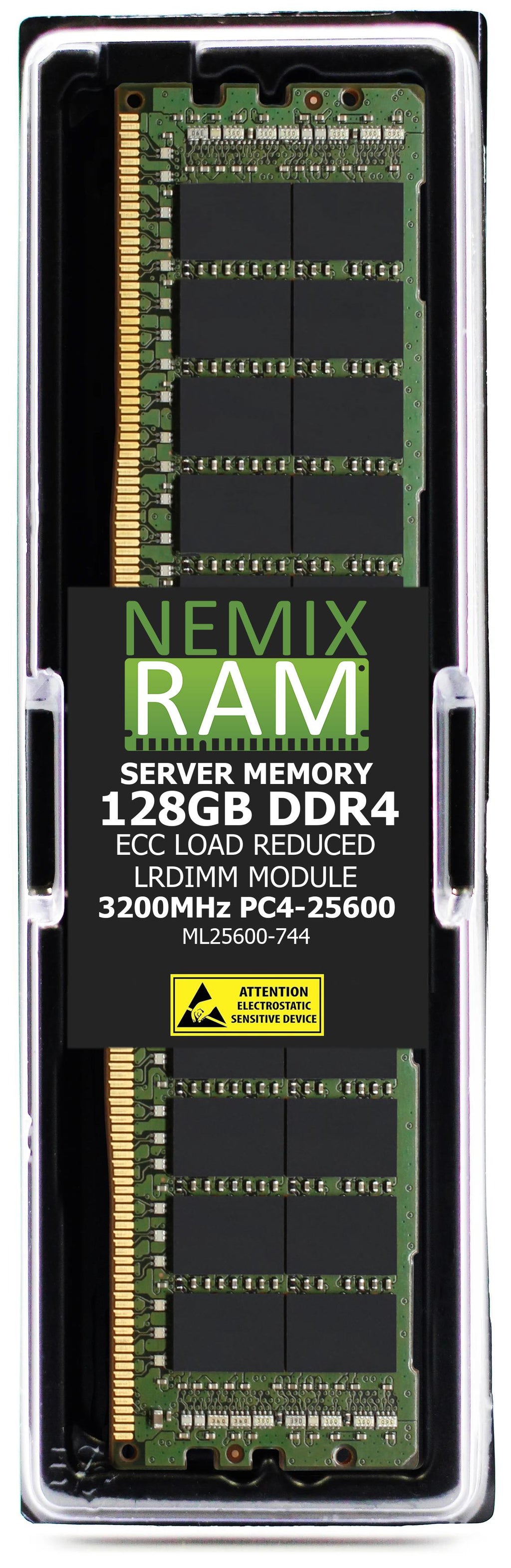

NEMIX RAM memory upgrades for the Fujitsu PRIMERGY RX2530 M6: DDR4-3200 PC4-25600 ECC Load-Reduced (LRDIMM) modules, 64GB to 128GB, sold as single modules and matched kits of up to 16, selected as drop-in, compatibility-tested replacements. 1.2V, 288-pin, JEDEC-compliant.
The PRIMERGY RX2530 M6 is a 1U dual-socket rack server for up to two 3rd Generation Intel Xeon Scalable processors. It has 32 DDR4 DIMM slots and supports up to 2TB with 64GB RDIMMs or 4TB with 128GB LRDIMMs. Fujitsu rates it for DDR4-3200 memory. The memory runs at the speed the processor supports: up to 3200 MT/s with Gold 6300 and Platinum 8300, 2933 MT/s with Gold 5300 and 2666 MT/s with Silver 4300 processors. This server takes DDR4 ECC Registered (RDIMM) or Load-Reduced (LRDIMM) memory; Fujitsu does not allow mixing RDIMMs and LRDIMMs, and unbuffered UDIMMs will not work. LRDIMMs are the route to the maximum capacity. Install identical modules in matched sets, in the slot order Fujitsu gives for each processor, and use one module size throughout.
Researched, matched, and compatibility-tested by NEMIX RAM, a US-based server memory specialist since 1993, and backed by a lifetime warranty. Purchase orders, net terms, and volume pricing are available for fleet refreshes and data center upgrades of Fujitsu PRIMERGY servers; contact our sales team for a quote.
