Technical Specifications
RDIMM for Fujitsu PRIMERGY RX200 S8
Module Density: 8GB
Form Factor: RDIMM
Technology Speed: DDR3 1866MHz PC3-14900
Rank: 2Rx8
Voltage: 1.5V
ECC: ECC
Buffered: Buffered
Compatible Machines: Fujitsu PRIMERGY RX200 S8
Fujitsu PRIMERGY RX200 S8
The Fujitsu PRIMERGY RX200 S8 supports 24 slots of upgradable memory, with a maximum capacity of 1.5TB. It is compatible with our RDIMM modules for high-performance operation.
NEMIX RAM memory upgrades for the Fujitsu PRIMERGY RX200 S8 are backed by a lifetime replacement warranty.
Our modules are researched, matched, and compatibility-tested using top-tier components from leading suppliers such as Samsung, Micron, and Hynix, ensuring compliance with
industry standards like JEDEC and CE requirements.
ALTERNATE CONFIGURATION SOLUTIONS
Also available for this machine
Memory speed and module type are not interchangeable — choose the page that matches your system.
Description

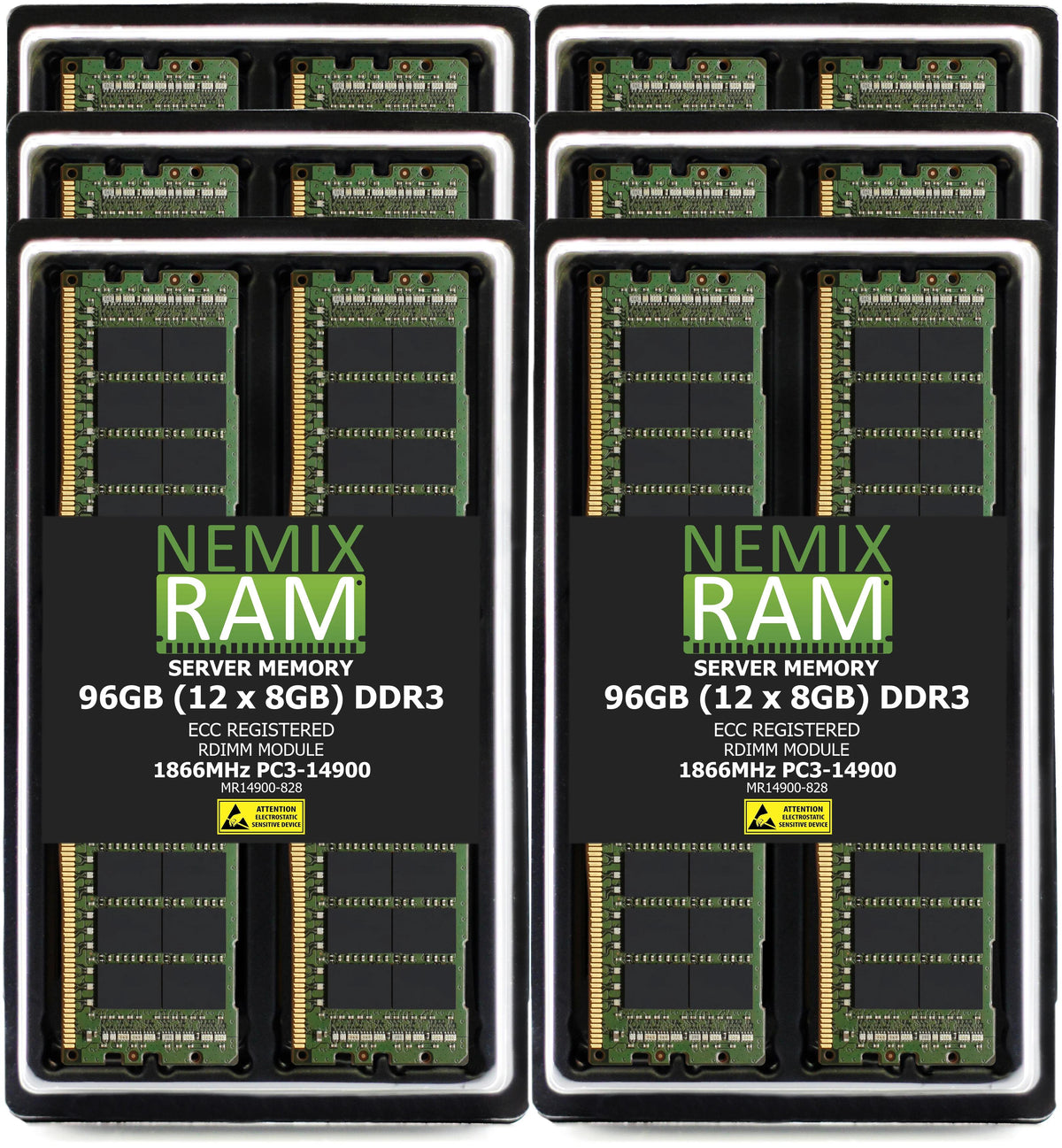

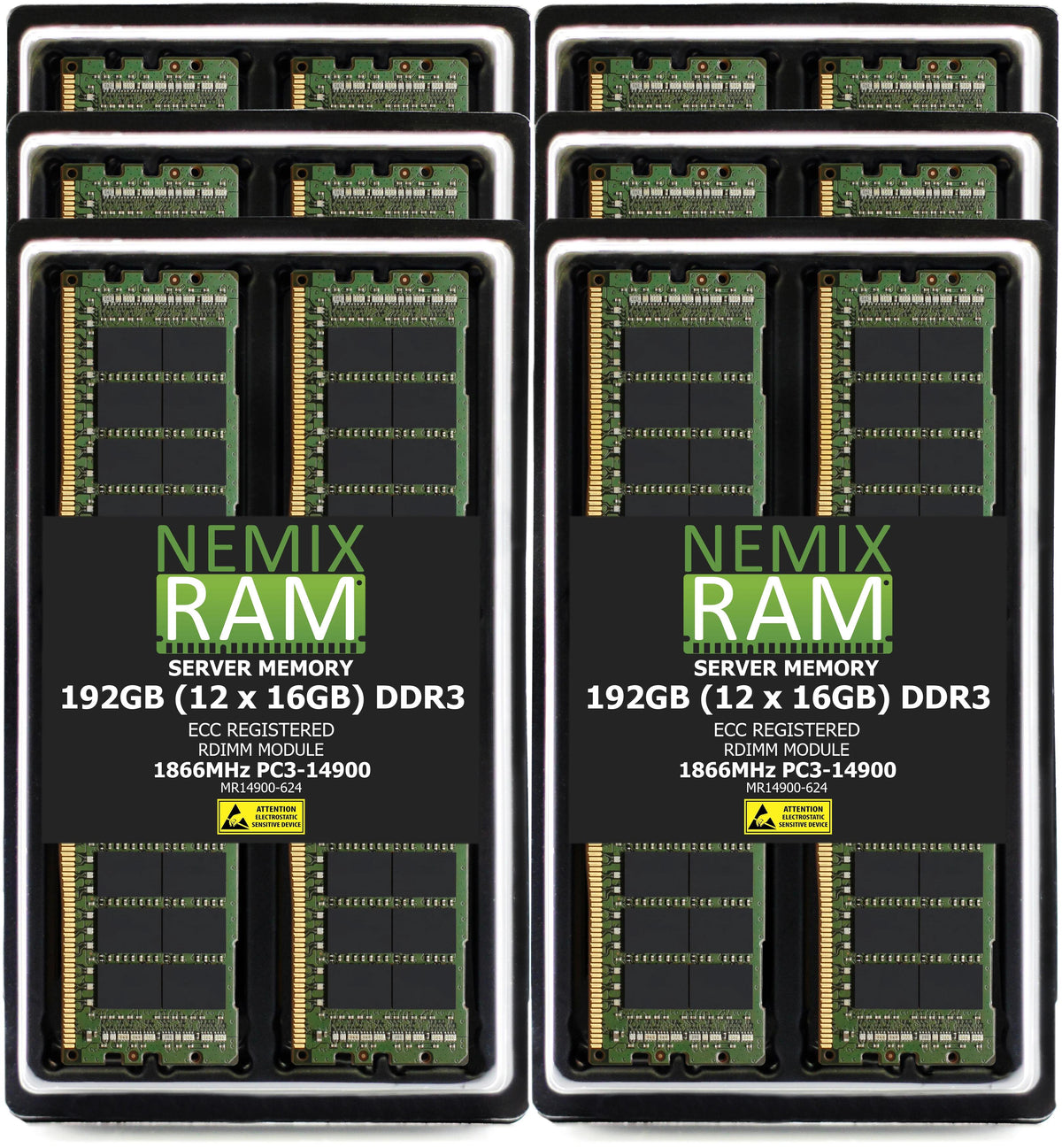

NEMIX RAM memory upgrades for the Fujitsu PRIMERGY RX200 S8: DDR3-1866 PC3-14900 ECC Registered (RDIMM) modules, 8GB to 16GB, sold as single modules and matched kits of up to 16, selected as drop-in, compatibility-tested replacements. 1.5V, 240-pin, JEDEC-compliant.
The PRIMERGY RX200 S8 is a 1U dual-socket rack server for up to two Intel Xeon E5-2600 v2 processors. It has 24 DDR3 DIMM slots and supports up to 384GB with 16GB RDIMMs, 768GB with 32GB LRDIMMs or 1.5TB with 64GB low-voltage LRDIMMs. Fujitsu rates 1.5V DDR3-1866 registered memory for this server, and 1.5V is Fujitsu's default memory voltage for maximum speed. Memory runs at up to 1866 MT/s with a supporting E5-2600 v2 processor; more DIMMs per channel or a slower processor lower the speed. This server takes DDR3 ECC Registered (RDIMM) or Load-Reduced (LRDIMM) memory; Fujitsu does not allow mixing RDIMMs and LRDIMMs, and unbuffered UDIMMs will not work. Install identical modules in matched sets, in the slot order Fujitsu gives for each processor, and use one module size throughout.
Researched, matched, and compatibility-tested by NEMIX RAM, a US-based server memory specialist since 1993, and backed by a lifetime warranty. Purchase orders, net terms, and volume pricing are available for fleet refreshes and data center upgrades of Fujitsu PRIMERGY servers; contact our sales team for a quote.
