Technical Specifications

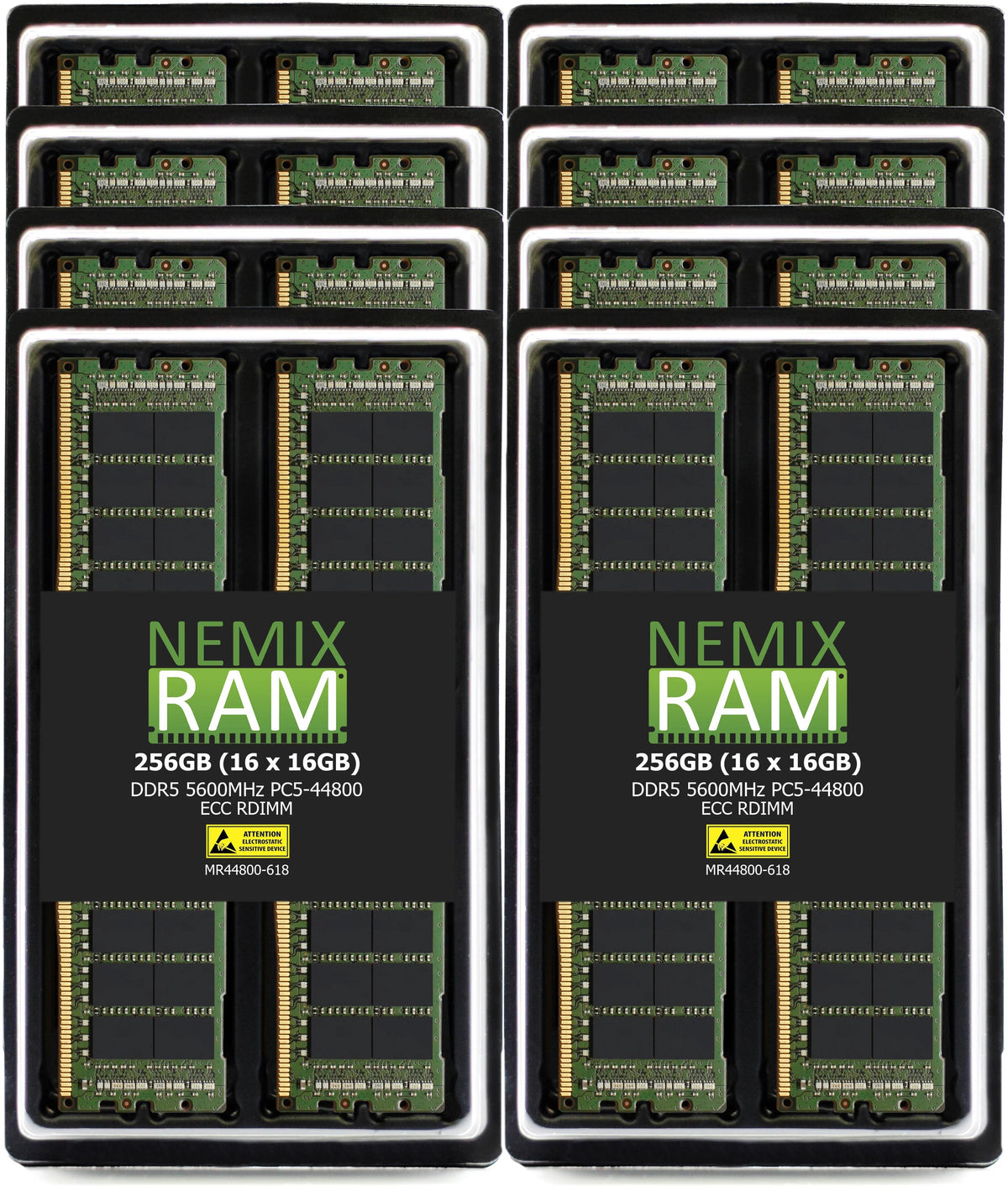

RDIMM for Intel® Server System M50FCP2UR312
Module Density: 16GB
Form Factor: RDIMM
Technology Speed: DDR5 5600MHz PC5-44800
Rank: 1Rx8
Voltage: 1.1V
ECC: ECC
Buffered: Buffered
Compatible Machines: Intel Server System M50FCP2UR312
Intel® Server System M50FCP2UR312
The Intel® Server System M50FCP2UR312 supports 32 slots of upgradable memory, with a maximum capacity of 8TB. It is compatible with our RDIMM modules for high-performance operation.
NEMIX RAM memory upgrades for the Intel® Server System M50FCP2UR312 are backed by a lifetime replacement warranty.
Our modules are researched, matched, and compatibility-tested using top-tier components from leading suppliers such as Samsung, Micron, and Hynix, ensuring compliance with
industry standards like JEDEC and CE requirements.
Description
NEMIX RAM memory upgrades for the Intel Server System M50FCP2UR312: 16GB / 32GB / 64GB / 128GB DDR5-5600 PC5-44800 ECC Registered (RDIMM) modules, sold as single modules and matched kits of up to 16, selected as drop-in, compatibility-tested upgrades. 1.1V, 288-pin, Registered, ECC, JEDEC-compliant for stable 24/7 operation. Platform: 4th and 5th Gen Intel Xeon Scalable processors. Intel specification: 32 DIMM slots: 16 per processor across 8 channels, two DIMMs per channel. Intel supports DDR5 RDIMM modules from 16GB to 256GB, up to 4TB per processor. Intel rates DDR5 at up to 5600 MT/s with 5th Gen processors and 4800 MT/s with 4th Gen at one DIMM per channel, and up to 4400 MT/s at two DIMMs per channel; these DDR5-5600 modules run at the speed the processor and population support. This system takes registered ECC memory; unbuffered UDIMMs will not work, and RDIMMs and LRDIMMs must not be mixed. Install identical modules and populate memory channels evenly on each processor for full bandwidth. Researched, matched, and compatibility-tested by NEMIX RAM, a US-based server memory specialist since 1993, and backed by a lifetime warranty. Volume, reseller, and B2B pricing available on request — contact our sales team for a quote.
