Technical Specifications

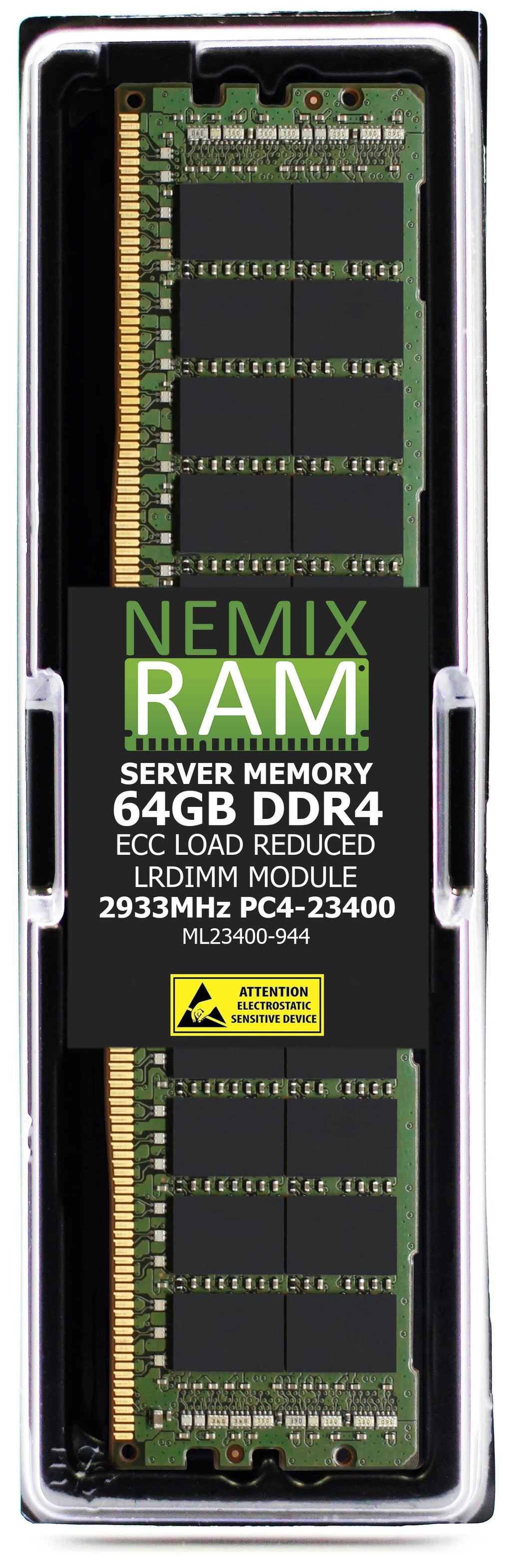

LRDIMM for Advantech ASMB-815
Module Density: 64GB
Form Factor: LRDIMM
Technology Speed: DDR4 2933MHz PC4-23400
Rank: 4Rx4
Voltage: 1.2V
ECC: ECC
Buffered: Buffered
Compatible Machines: Advantech ASMB-815
Advantech ASMB-815
The Advantech ASMB-815 supports 6 slots of upgradable memory, with a maximum capacity of 768GB. It is compatible with our LRDIMM modules for high-performance operation.
NEMIX RAM memory upgrades for the Advantech ASMB-815 are backed by a lifetime replacement warranty.
Our modules are researched, matched, and compatibility-tested using top-tier components from leading suppliers such as Samsung, Micron, and Hynix, ensuring compliance with
industry standards like JEDEC and CE requirements.
Description

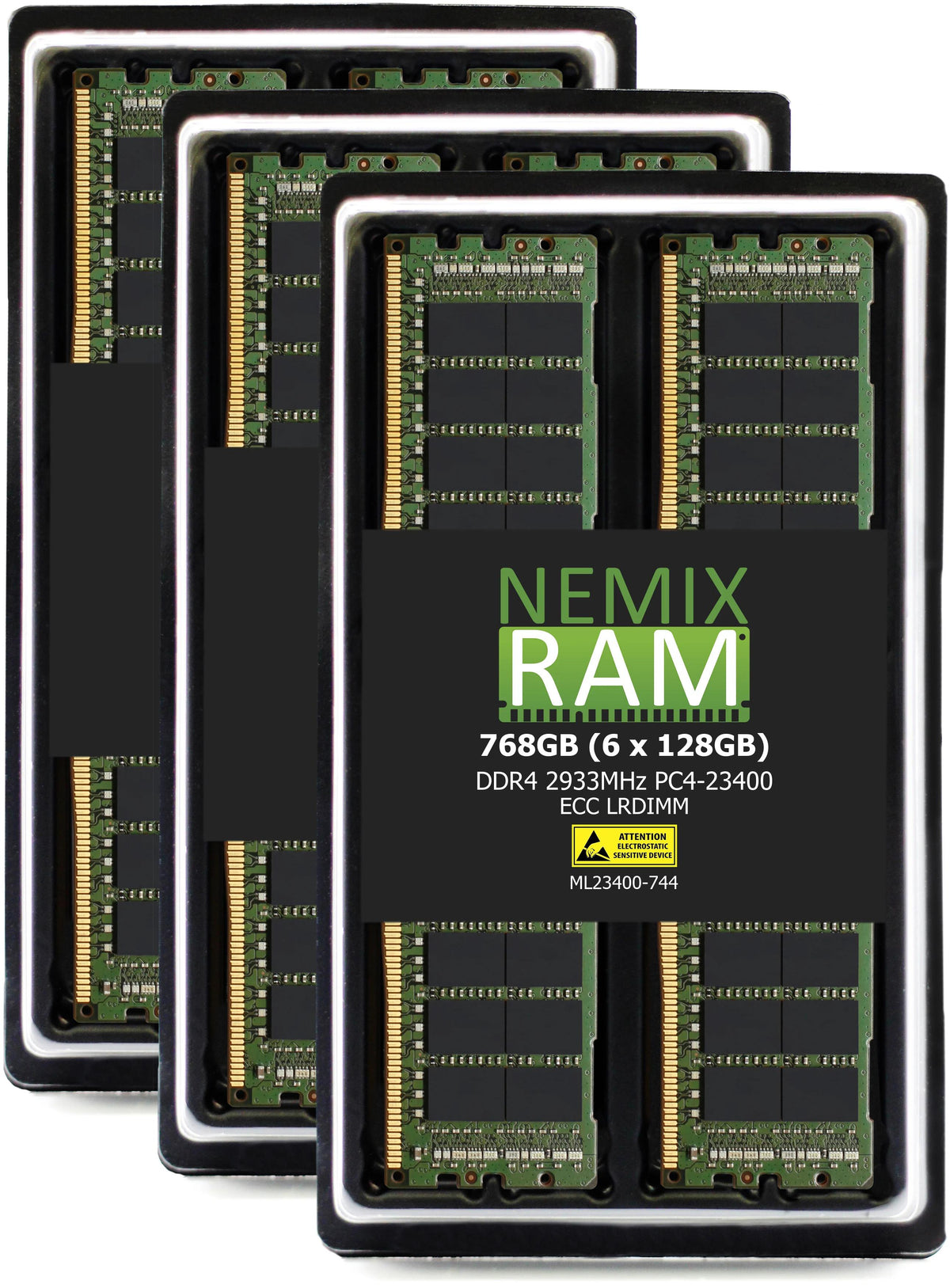

NEMIX RAM memory upgrade for Advantech ASMB-815 Server Board: 64GB / 128GB DDR4-2933 PC4-23400 ECC Load-reduced (buffered) LRDIMM modules, sold as single modules and matched kits of up to 6, selected as drop-in, compatibility-tested upgrades. 1.2V, 288-pin, Load-reduced (buffered), ECC, JEDEC-compliant for stable operation in servers and data center systems. Advantech lists DDR4 RDIMM, LRDIMM and 3DS RDIMM with six DIMM slots (one DIMM per channel) and 768GB maximum, for 1st and 2nd Gen Intel Xeon Scalable processors (LGA3647). Advantech notes that 2933 MT/s memory is supported by the 82xx and 62xx series processors; other processors run memory at the speed they support. RDIMM modules for this machine have their own listing. Researched, matched, and compatibility-tested by NEMIX RAM, a US-based memory specialist since 1993, and backed by a lifetime warranty. Volume, reseller, and B2B pricing available on request. Contact our sales team for a quote.
